Transforming flat-to-shape objects using sewing technology

Researchers from the Human Pc Interplay Institute (HCII) and Robotics Institute (RI) at Carnegie Mellon College launched a novel methodology for fabricating practical flat-to-shape objects utilizing a computer-controlled stitching machine.

The group contains Sapna Tayal, undergraduate scholar within the Faculty of Design; Lea Albaugh, Mark Stehlik postdoctoral instructing fellow at HCII; James McCann, affiliate professor in RI; and Scott E. Hudson, professor and affiliate division head for schooling in HCII.

“Flat-to-shape” refers to things that may be reworked from a flat sheet right into a three-dimensional type via strategies like bending, folding, or assembling related elements. Earlier strategies have deployed flat-to-shape methods on a small scale to scale back development time on 3D printers and laser cutters, however these strategies usually required time-consuming guide meeting and will be troublesome to scale up. The CMU group noticed a chance to construct on these methods and create a way to make furniture-sized practical and quick-to-deploy objects.

“Stitching machines are an accessible fabrication know-how. A few of these machines have computational management which unlocks plenty of fabrication potentialities and this one permits us to stitch at a bigger scale, and are sometimes used to make quilted blankets,” stated Albaugh. “In our challenge, we targeted on utilizing the CNC stitching machine in a brand new means.”

The group’s methodology makes use of the stitching machine to sew pockets between layers of cloth, and stiff panels are inserted into the pockets. A number of cloth varieties can be utilized, starting from muslin for heavy-duty functions to extra delicate materials for ornamental functions. The supplies may also be custom-made on a panel-by-panel foundation to adapt to every object’s wants.

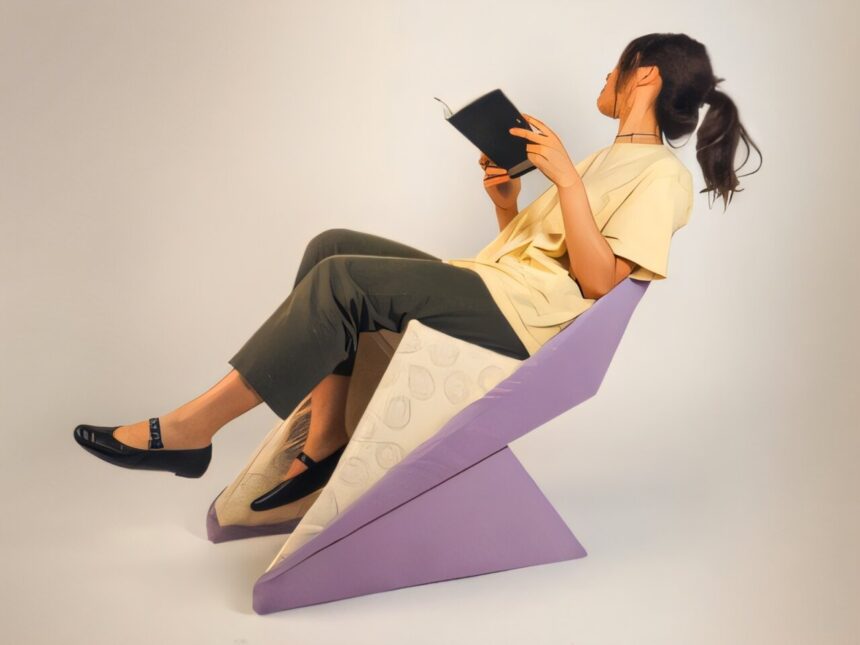

The researchers demonstrated how the supplies will be chosen to help quite a lot of practical targets, comparable to utilizing thicker plywood for a human-weight supporting chair and customized LED panels with sheer cloth for a practical lamp. Moreover, the method additionally permits for added mechanisms comparable to cords, magnets, and hook-and-loop fasteners to direct and stabilize flat-to-shape transitions.

“It was a enjoyable expertise to explain a brand new sort of fabrication house via materials exploration and hands-on making,” stated Tayal. “As a design scholar, I usually make jigs to craft one-off objects however having the possibility to refine and clarify a course of in a analysis context, particularly on such an fascinating machine, was actually thrilling.”

The novel methodology allowed the researchers to realize their aim of making gadgets which might be giant sufficient for whole-body human interactions, comparable to sitting, carrying or carrying whereas nonetheless being moveable and adaptable to a number of settings.

Of their paper, titled “Creating Furnishings-Scale Deployable Objects with a Pc-Managed Stitching Machine,” they describe a set of practical flat-to-shape artifacts they created with their method, together with a aspect desk, backpack, a chair and a lamp. Every object integrated totally different variations of inserting inflexible panels inside sheets of versatile cloth. The paper was accepted to the 2025 Conference on Human Factors in Computing Systems (CHI).

The challenge was a part of Tayal’s successful Industrial Designers Society of America (IDSA) Pupil Benefit Award displays for the district degree spherical.
