SAPPORO, Japan – Ocean winds whip throughout the seashores, hillsides and sprawling plains of Hokkaido. There’s sufficient wind vitality right here for Japan’s northernmost island to energy itself and export clear electrical energy to the remainder of the nation.
However Hokkaido can’t harness all of that energy until it has a approach to retailer vitality when breezes are blowing and use it later when the gusts die down.
So, the island is popping to a brand new technology of batteries designed to stockpile huge quantities of vitality – a crucial step towards changing energy crops fueled by coal, fuel and oil, which create a 3rd of world greenhouse fuel emissions.
Hokkaido is going through an issue that’s beginning to confront energy grids around the globe. For the previous 150 years, utilities have saved vitality in piles of coal or tanks of fuel that may be burned on demand. However as international locations swap from fossil fuels to scrub vitality, they want a brand new form of backup system that may ship energy at any time when somebody flips a lightweight swap, not simply when the solar shines or the wind blows.
A wind farm within the city of Setana on Japan’s Hokkaido island. Power produced by such generators can go to waste if it may possibly’t be saved. Credit score: Noriko Hayashi | The Washington Publish
“Most utilities are undoubtedly recognizing that in the event that they’re including renewables, they’ve so as to add storage,” mentioned Vanessa Witte, a senior analyst on the vitality information and analytics agency Wooden Mackenzie.
After many years of growth, the world has discovered the best way to make wind generators and photo voltaic panels cheaply and at huge scale. They’re beginning to make a dent in vitality manufacturing, accounting for 15% of electrical energy globally, in line with the Worldwide Power Company. However now, just a few of the areas which have adopted wind and photo voltaic most aggressively are discovering a few of that vitality goes to waste as a result of they’ll’t retailer it.
Energy firms are experimenting with new methods to carry on to that clear electrical energy, from stashing warmth in vats of sand to supersizing the lithium-ion batteries that energy laptops and automobiles. Some 30 miles from Sapporo, the Hokkaido Electrical Energy Community (HEPCO Community) is deploying stream batteries, an rising form of battery that shops vitality in hulking tanks of metallic liquid.
However the know-how faces a raft of challenges, together with excessive up-front prices and skeptical financiers. China and Russia dominate the marketplace for vanadium, the steel that makes stream batteries sturdy and simple to take care of. “The availability chain for vanadium is extraordinarily precarious,” mentioned Kara Rodby, a battery analyst on the funding agency Volta Power Applied sciences.
Nonetheless, stream batteries are making their debut in huge real-world tasks. Sumitomo Electrical, the corporate that constructed the Hokkaido plant, has additionally constructed stream batteries in Taiwan, Belgium, Australia, Morocco and California. Hokkaido’s stream battery farm was the most important on the earth when it opened in April 2022 – a document that lasted only a month earlier than China constructed one that’s eight occasions larger and might ship as a lot vitality as a mean U.S. pure fuel plant.
“It appears like stream batteries are lastly about to take off with curiosity from China,” mentioned Michael Taylor, an vitality analyst on the Worldwide Renewable Power Company, a world group that research and promotes inexperienced vitality. “When China begins to get comfy with a know-how and sees it working, then they’ll in a short time scale their manufacturing base in the event that they suppose they’ll drive down the prices, which they often can.”
That is what the ability crops of the long run might appear to be: As an alternative of stashing coal and fuel subsequent to furnaces, they’ll use electrons to retailer vitality within large batteries.
The Electrons
If the world goes to energy itself with renewable vitality, it must be prepared at a second’s discover.
All energy grids have to tug off a fragile balancing act: There should all the time be about as many electrons flowing out of energy crops as properties and companies are utilizing. If that steadiness ever falters, a group may face blackouts – or the utility may waste cash making additional vitality nobody makes use of.
To ensure there’s all the time sufficient electrical energy to go round, vitality firms depend on extra-polluting energy crops referred to as “peaker crops.” They get their title as a result of they solely run when electrical energy use hits its peak – for instance, on a very sizzling day when everyone runs their air conditioners without delay.
Peaker crops are typically older, much less environment friendly and extra polluting than different crops. More often than not, they sit idle. However in an emergency, they dump gas – often pure fuel – into their furnaces to generate electrical energy quick. That retains energy flowing steadily to properties, companies and factories, however it additionally pumps air pollution into the air.
Wind generators and photo voltaic panels don’t pollute, however they’ll’t make extra electrical energy on demand. They solely produce as a lot vitality because the solar and the wind present, which modifications all through the day or 12 months relying on the climate.
One approach to easy out these bumps is to make use of batteries to retailer renewable vitality when it’s plentiful and use it later when it turns into scarce.
The vitality held in batteries mirrors the tanks of fuel sitting subsequent to a furnace ready to be burned – besides batteries can ship out electrical energy even quicker than a furnace can ramp up, and so they don’t create carbon air pollution.
Utilities are already constructing battery farms in areas which have added a variety of wind and solar energy, corresponding to California and Texas. Thus far, most of those batteries are lithium-ion, just like those in a cellphone, laptop computer or electrical automotive. As a result of they’re already in-built bulk for different industries, they’ve turn out to be the default possibility for energy firms.
However consultants say there may be higher choices. Lithium-ion batteries are good for smartphones as a result of they’re light-weight and slot in small areas, even when they don’t final lengthy and have to get replaced incessantly. Utilities have a unique set of priorities: They should retailer hundreds of thousands of occasions extra vitality, and so they have rather more room to work with.
“If you concentrate on utility-scale stationary purposes, possibly you don’t want lithium-ion batteries. You should use one other one that’s cheaper and might present the companies that you really want like, for instance, vanadium stream batteries,” mentioned Francisco Boshell, a researcher on the Worldwide Renewable Power Company.
The Circulate Batteries
To energy cities with renewable vitality, you want larger batteries.
Inside a sprawling two-story warehouse, HEPCO Community is storing electrical energy in 130 gleaming metal and plastic tanks. They’ll stockpile sufficient vitality to energy greater than 27,000 Japanese properties for 4 hours.
Every 10,000-gallon tank holds tiny particles of the steel vanadium, which float round in water. This metallic soup holds the important thing to hoarding vitality in huge portions.
Vanadium is a shape-shifter. For those who add or take away electrons from its atoms the aspect’s electrical cost will turn out to be extra optimistic or destructive, and its shade modifications from purple to inexperienced, blue and yellow. The steel’s rainbow shade palette led Swedish chemist Nils Gabriel Sefstrom to call the aspect after Vanadis, the Scandinavian goddess of magnificence. However vanadium’s means to alter its cost is what makes it so helpful in a battery.
Right here’s the way it works:
One tank holds vanadium with a extra optimistic cost, whereas the opposite tank holds vanadium with a extra destructive cost. You may consider them just like the + and – sides of the batteries sitting in a TV distant or a flashlight.
Each tank is connected to a set of pipes that pump vanadium into battery cells stacked in cupboards on the second ground.
Vanadium flows by every battery cell on both aspect of a membrane – which is why it’s referred to as a stream battery.
When HEPCO Community desires to cost the batteries, it makes use of vitality from wind generators to maneuver electrons from the optimistic aspect of the membrane to the destructive aspect, which creates an imbalance: Now there are much more electrons crammed into the destructive tank than the optimistic tank, and so they’re itching to unfold out evenly as soon as once more.
When HEPCO Community desires to make use of the vitality saved contained in the batteries, it lets electrons stream the opposite method. Their motion creates an electrical present that may energy properties and companies throughout the island.
Circulate batteries are designed to faucet large tanks that may retailer a variety of vitality for a very long time. To spice up their storage capability, all you must do is construct a much bigger tank and add extra vanadium. That’s an enormous benefit: Against this, there’s no straightforward approach to modify the storage capability of a lithium-ion battery – if you’d like extra storage, you must construct a complete new battery.
.jpg?width=700&auto=webp&quality=80&disable=upscale "Energy held in the flow batteries at the Hokkaido plant mirrors tanks of gas waiting to be burned.")

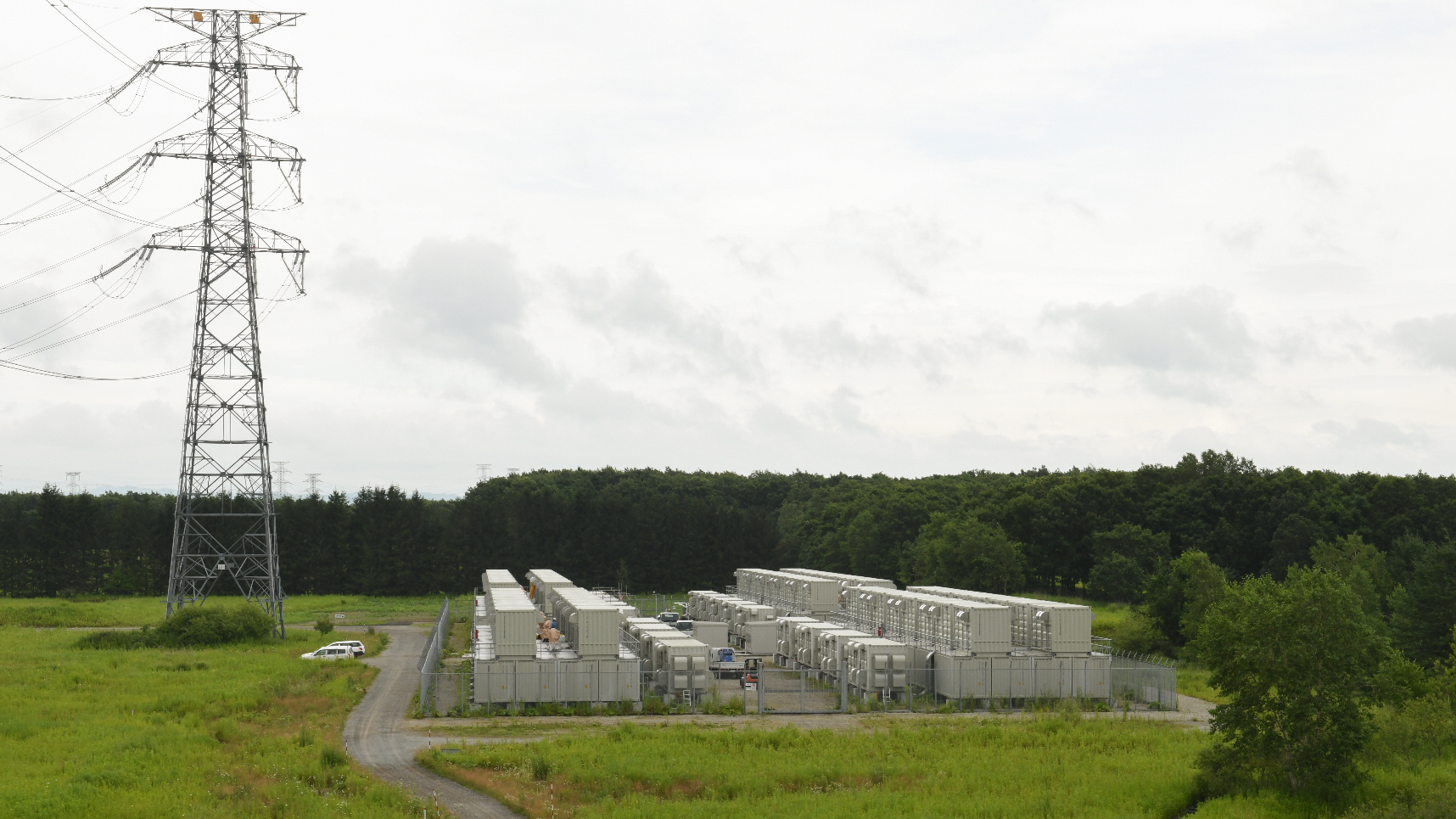

Power held within the stream batteries on the Hokkaido plant mirrors tanks of fuel ready to be burned. Nevertheless it does not create carbon air pollution. Credit score: Noriko Hayashi | The Washington Publish
The stream batteries on this plant are designed to retailer vitality for about 4 hours of use, which is on par with lithium-ion batteries. However Sumitomo Electrical says it expects future tasks will goal to double that length to eight to 10 hours. That’s about what they’d must final in a single day when photo voltaic panels are dormant, or to fill within the gaps between gusts of wind.
One main barrier to constructing extra of those battery farms is discovering sufficient vanadium. Three-quarters of the world’s provide comes as a by-product from 10 metal mills in China and Russia, in line with Rodby, who bought her PhD on the Massachusetts Institute of Know-how finding out the design and marketplace for stream batteries. Australia, South Africa and the US additionally produce vanadium, however in a lot smaller portions.
Mines which were proposed may increase provide. And a few stream battery start-ups are attempting to sidestep the vanadium drawback fully through the use of completely different supplies which can be simpler to purchase.
The opposite hurdle is their up-front price. Vanadium stream batteries are at the least twice as costly to construct as lithium-ion batteries, Rodby mentioned, and banks are hesitant to lend cash to fund an unfamiliar know-how.
However consultants say stream batteries will be cheaper in the long term as a result of they’re simpler to take care of and last more. A lithium-ion battery may need to get replaced after 10 years, however Rodby says stream batteries can final for much longer. “There actually isn’t any finite lifetime for a stream battery in the best way there may be for lithium-ion,” Rodby mentioned.
Sumitomo Electrical President Osamu Inoue mentioned his firm ensures its stream batteries will final 20 years – however the vanadium inside will be reused ceaselessly in future batteries. The corporate’s oldest business batteries have been working for 11 years to this point.
The Grid
Wind and solar energy are coming. Batteries can maintain them from inflicting chaos on the ability grid.
Simply outdoors the constructing that homes the gleaming floor-to-ceiling tanks, Sumitomo has constructed a brand new model of its stream batteries, this time tucking all of their elements into transport containers. That makes them quicker and cheaper to construct than the $100 million indoor demonstration plant subsequent door.
The batteries join to properties, companies and energy crops throughout Hokkaido by plugging into the ability grid.
These batteries assist Hokkaido maintain a gentle steadiness between the quantity of vitality its energy crops generate and the quantity of electrical energy its properties and companies use. However they’re not the one approach to preserve that steadiness: Whereas Hokkaido is on a battery-building spree, it’s additionally beefing up undersea energy traces to share electrical energy with the remainder of Japan.
.jpg?width=700&auto=webp&quality=80&disable=upscale "Power lines running from the flow battery plant on Hokkaido")

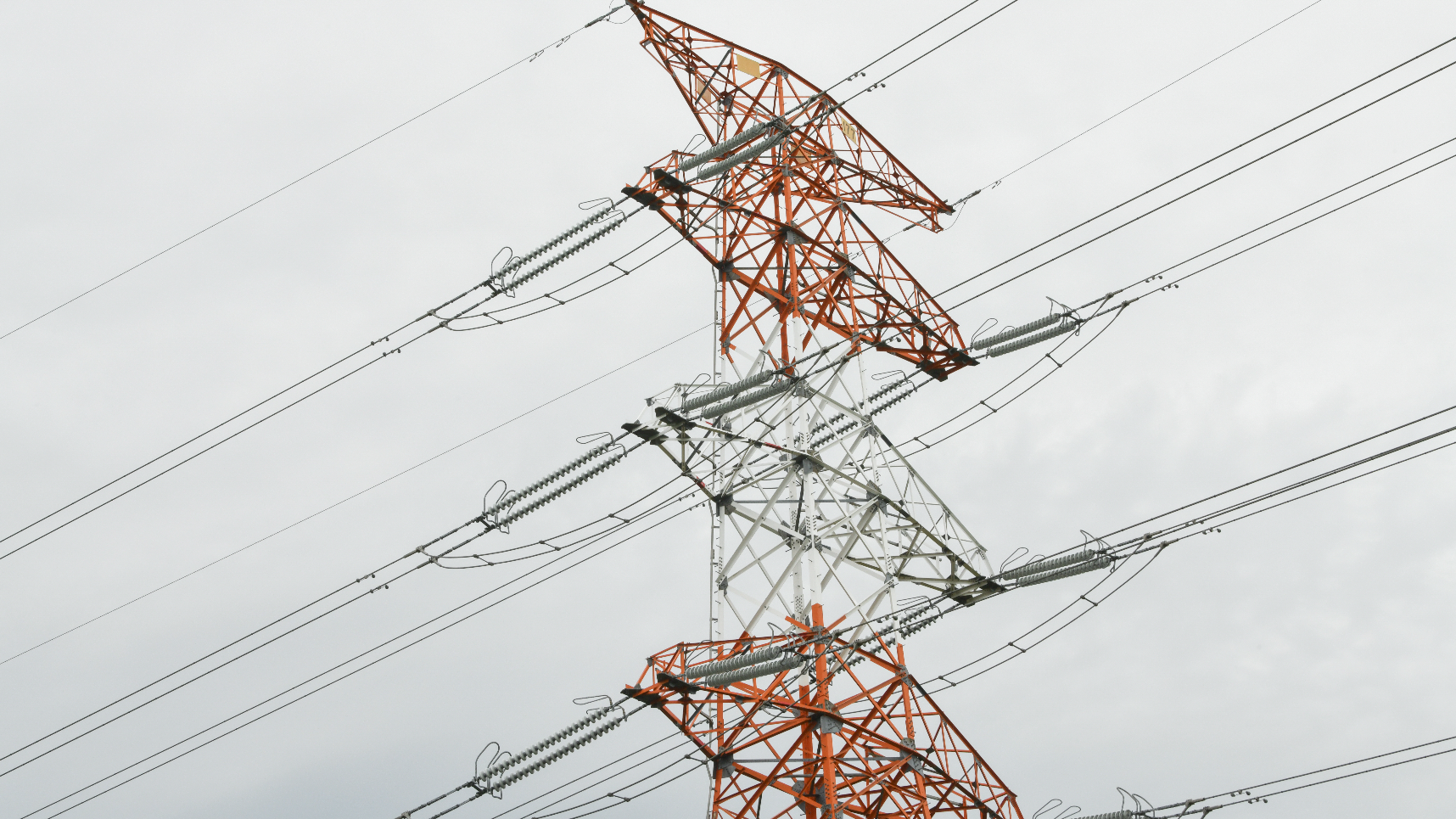

Energy traces working from the stream battery plant on Hokkaido. Credit score: Noriko Hayashi | The Washington Publish
Thus far, it’s working: Regardless that Hokkaido will get almost a fifth of its electrical energy from wind and photo voltaic, it doesn’t face blackouts and it wastes nearly zero vitality.
Having a secure grid permits Hokkaido to maintain constructing extra renewable vitality, bringing it nearer to its aim of slicing energy plant emissions to zero by 2050. The stream batteries sitting within the transport containers outdoors Sapporo paved the best way for HEPCO Community so as to add 15 new wind farms round Hokkaido. The generators generate about 3% of the island’s electrical energy with out air pollution.
Consultants say the world might want to construct many extra batteries like these to remain on observe to chop greenhouse emissions to zero by 2050. Over the subsequent six years, utilities should construct 35 occasions as many batteries as there are at the moment to absorb all additional renewable vitality that can come on-line, in line with the Worldwide Power Company.
The purpose of all this battery constructing is on show off the coast of Hokkaido.
Earlier this 12 months, Japan’s greatest offshore wind farm opened simply off the coast of Ishikari, a seaside city on the outskirts of Sapporo. The 14 generators – every about 20 tales tall – face throughout the water from a pure fuel plant that might shut down if Hokkaido’s clear vitality plans succeed.
