Nondestructive microwave radar finds moisture hiding inside a building’s walls

For householders, moisture buildup may cause the most important complications. Mildew grows on drywall and wood-based supplies, creeping alongside partitions, flooring and ceilings. Constructing supplies start to erode and decay. As insulation turns into broken, the house’s energy-efficiency decreases. Even human well being suffers, as moisture additionally results in air-quality points.

The important thing to stopping intensive moisture harm is discovering it early, when it may be simply fastened.

Researchers on the Division of Vitality’s Oak Ridge Nationwide Laboratory are utilizing microwave radar reflection to nondestructively detect and measure the moisture content material of supplies inside partitions with out eradicating drywall or cladding. This additionally expedites moisture identification and allows mildew progress to be handled within the early levels.

The analysis workforce’s research outcomes were published in IEEE Xplore and introduced through the IEEE Radar Convention 2024 in Denver.

“We all know microwave radar reveals nice promise for this, as a result of it is well-known that it could possibly measure the moisture in wooden samples,” ORNL’s Philip Boudreaux mentioned. “However can it measure moisture in wooden that’s inside a wall to detect high-moisture points earlier than they turn into a giant downside? That is the problem.”

A leaky seal

The envelope of a constructing consists of exterior partitions, the roof and basis, all of which be part of to forestall moisture transmission. However the envelope is itself vulnerable to moisture points attributable to many components: an excessive amount of rain, floor dampness, air leaking via holes, and vapor diffusion when moisture strikes from larger to decrease concentrations via the envelope.

Most houses are created from wood-frame development, and when wooden is moist, it is the right surroundings for mildew to develop. If a wall is broken or designed incorrectly, water vapor that seeps via wooden could make it damp. For that reason, Boudreaux mentioned, wooden was chosen because the preliminary materials to research the capabilities of microwave radar.

“You may detect water inside wooden with microwave vitality that displays off of the fabric utilizing radar,” Boudreaux mentioned. “You can too measure moisture in multiple sort of fabric inside the wall.”

As a part of the electromagnetic spectrum, microwaves work together with supplies in an identical option to seen mild, however they penetrate additional, creating reflections. Radar methods work by emitting alerts like microwaves after which detecting the reflections of these microwaves. When used with partitions, the microwave reflection pulse traits are based mostly on the moisture within the materials.

Partitions are made up of layers of supplies, and every layer might have totally different quantities of moisture. Nonetheless, by measuring the size of time taken for the microwaves to return to the sensor, the space to every materials within the wall might be calculated, and this can be utilized to map out and measure the moisture inside the layers.

Measuring up

ORNL’s research targeted on detecting moisture within the wall’s structural sheathing, which is often manufactured from oriented strand board in houses. This board sits simply behind the cladding, or outer layer, in wood-frame development.

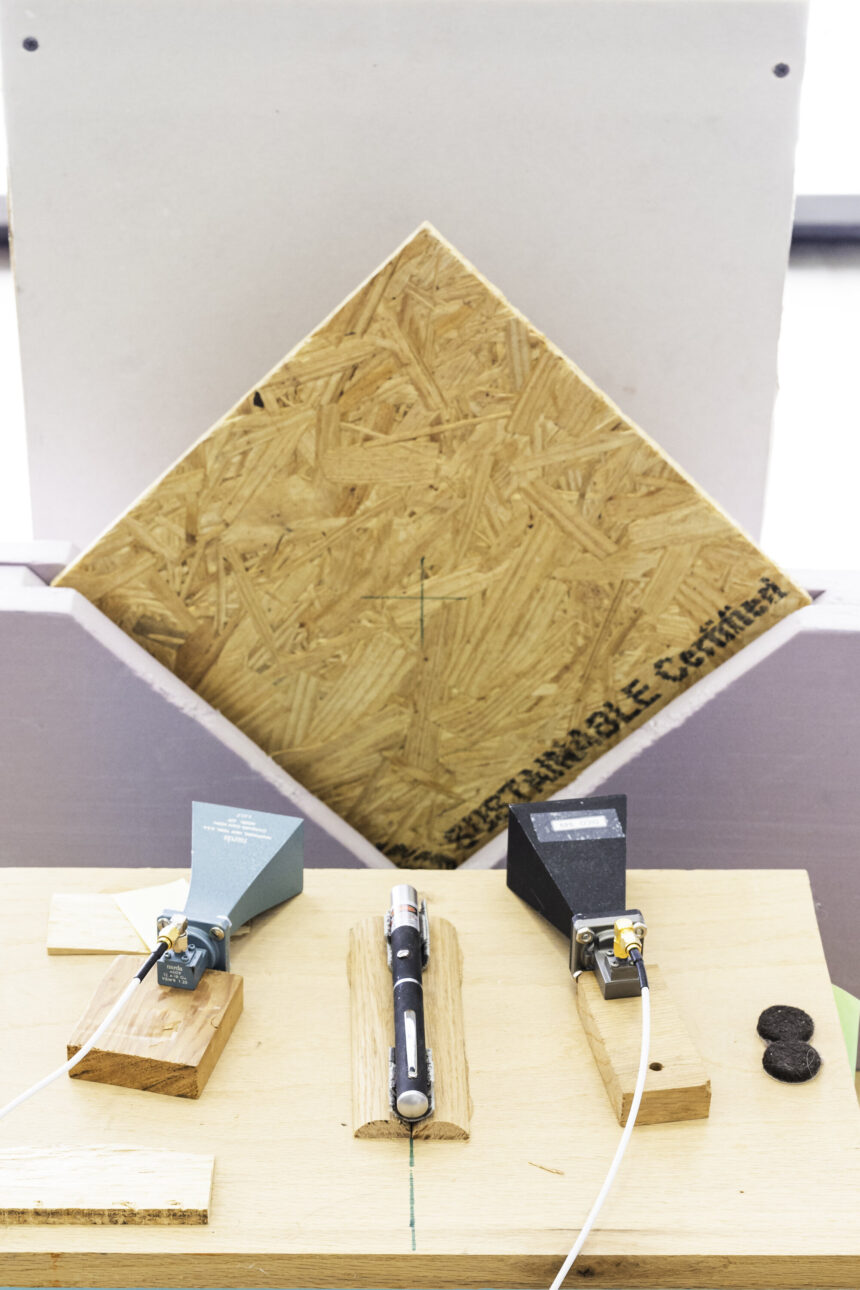

Boudreaux and workforce carried out experimental testing on 305-millimeter-square wooden sheathing samples that have been 10 millimeters thick. Each bit was dried in an oven after which conditioned to achieve particular moisture contents. The workforce used the microwave radar to measure the moisture content material of the sheathing after which in contrast the outcomes to measurements taken with a traditional handheld moisture meter.

“The outcomes proved that microwave radar know-how can detect and measure moisture inside the sheathing and might accomplish that inside 3% when in comparison with standard handheld detection meters,” he mentioned. For the approach to work in buildings, Boudreaux’s workforce needed to first discover out if the microwave radar might see the sheathing behind the drywall.

“So, we positioned a chunk of drywall in entrance of the sheathing at a three-and-a-half-inch distance and instantly noticed that, sure, the radar was seeing the sheathing,” he mentioned.

The proof-of-concept testing then moved to the second section—figuring out if the radar can distinguish the moisture content material of the sheathing. By making use of mathematical algorithms developed by the ORNL analysis workforce, outcomes as soon as once more proved optimistic. The radar reflection alerts could possibly be correlated to moisture content material.

“We’re capable of predict the mirrored microwave pulse form from moist oriented strand board,” he mentioned. “However the pulse may also be analyzed empirically by correlating pulse traits to moisture content material.”

Researchers subsequent reworked the experimental setup right into a portable custom miniature electronic system to allow discipline measurements. The experimental setup included measurements based mostly on the reflection of the microwave alerts carried over a frequency of 10–15 gigahertz.

Past partitions

With the analysis workforce’s promising outcomes, the intent is to license the ORNL know-how to a producer in order that the transportable microwave radar system might be purchased off the shelf in the future, permitting any inspector or house owner to buy and use the gadget.

The device may be used to guage roofs and foundations and might help potential homebuyers keep away from surprises by figuring out points that might go unnoticed throughout an inspection.

“When growing the detector, we made a system particularly relevant to partitions in residential houses, and for basic public entry,” Boudreaux mentioned. “It is small, transportable, light-weight with simple setup and might be tailored to transmit inside frequency laws.”

The workforce’s subsequent section of analysis consists of measuring the microwave reflection from full wall assemblies with totally different claddings, corresponding to vinyl siding and brick.

“With early detection, a small challenge might be repaired earlier than main harm happens,” he mentioned. “We have discovered what might help find that moisture early, however we nonetheless have work to do and extra supplies to check and extra boundaries to discover with microwave radar reflection.”
