New diode chain could be used to develop high-power terahertz technologies

Electromagnetic waves with frequencies between microwave and infrared mild, also called terahertz radiation, are leveraged by many current applied sciences, together with varied imaging instruments and wi-fi communication programs. Regardless of their widespread use, producing sturdy and steady terahertz indicators utilizing current electronics is thought to be difficult.

To reliably generate terahertz indicators, engineers usually depend on frequency multipliers, digital circuits that may distort an enter sign, to generate an output sign with a desired frequency. A few of these circuits are based mostly on Schottky barrier diodes, gadgets by which the junction between a metallic and semiconductor kind a one-way electrical contact.

Whereas some frequency multipliers based mostly on Schottky barrier diodes have achieved promising outcomes, gadgets based mostly on particular person diodes can solely deal with a restricted quantity of vitality. To extend the vitality they’ll handle, engineers can use a number of diodes organized in a series. Nevertheless, even this strategy can have its limitations, because the distribution of the electromagnetic discipline between the diodes in a series usually turns into uneven.

Researchers at College of Digital Science and Expertise lately launched a brand new diode chain design that might overcome this limitation, by reshaping native electromagnetic fields and distributing them extra uniformly alongside the chain. The brand new uneven C-shaped diode chain, launched in a paper published in Nature Electronics, was discovered to multiply frequencies extra effectively than most different diode-based frequency multipliers developed so far.

“Frequency multiplier gadgets based mostly on Schottky barrier diodes can be utilized to generate terahertz radiation, providing excessive energy output and potential integration into all-solid-state programs,” wrote Honji Zhou, Tianchi Zhou and their colleagues of their paper.

“Nevertheless, the scaling of the output energy of such gadgets is usually restricted by the facility dealing with capability of a single diode. A linked chain of Schottky barrier diodes, along with an influence combining strategy, can be utilized to extend the terahertz output energy. But the uneven discipline distribution among the many diodes—which is said to the similarity between the terahertz wavelength and the bodily dimensions of the diodes themselves—results in decrease effectivity and untimely breakdown.”

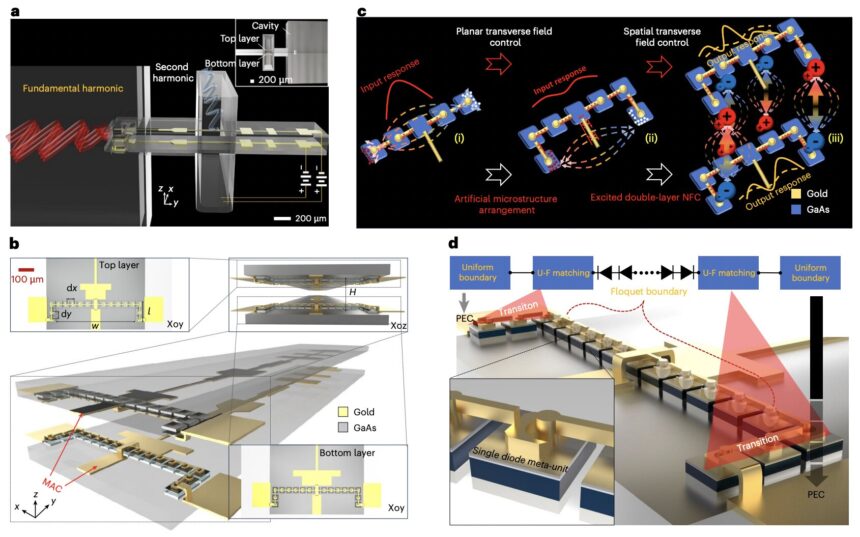

To beat the restrictions of beforehand launched single diode-based and diode chain-based frequency amplifiers, the researchers launched a brand new design by which diodes are organized in a double-layer chain formed just like the letter C. The form of the chain is uneven, as this could enhance the circulation of electromagnetic fields between diodes.

The researchers assessed the efficiency of their newly designed diode chain in each simulations and laboratory assessments. Remarkably, they discovered that it achieved one of many highest terahertz frequency-doubling efficiencies reported so far, highlighting its potential as a frequency multiplier.

“We report an uneven double-layer C-shaped diode chain construction that may regulate the native electromagnetic discipline distribution and improve the conversion effectivity of the diode chain,” wrote the authors. “Our ensuing system has a frequency doubling effectivity of 38%, with an output exceeding 300 mW at 170 GHz.”

The C-shaped diode chain may quickly be improved and used to develop a variety of digital gadgets. Sooner or later, it may allow the introduction of extra compact terahertz wave transmitters and mills, which may very well be used to create extra superior imaging, sensing and communication programs.
