3D printing approach strings together dynamic objects to assemble bionic robots, sculptures and more

It is tough to construct units that replicate the fluid, exact movement of people, however which may change if we might pull just a few (literal) strings. Not less than, that is the concept behind “cable-driven” mechanisms by which operating a string by way of an object generates streamlined motion throughout an object’s completely different components. Take a robotic finger, for instance: You possibly can embed a cable by way of the palm to the fingertip of this object after which pull it to create a curling movement.

Whereas cable-driven mechanisms can create real-time movement to make an object bend, twist, or fold, they are often difficult and time-consuming to assemble by hand. To automate the method, researchers from MIT’s Pc Science and Synthetic Intelligence Laboratory (CSAIL) have developed an all-in-one 3D printing method referred to as “Xstrings.” Half design instrument, half fabrication methodology, Xstrings can embed all of the items collectively and produce a cable-driven machine, saving time when assembling bionic robots, creating artwork installations, or engaged on dynamic style designs.

In a paper to be introduced on the 2025 Convention on Human Components in Computing Methods (CHI2025), the researchers used Xstrings to print a variety of colourful and distinctive objects that included a pink strolling lizard robotic, a purple wall sculpture that may open and shut like a peacock’s tail, a white tentacle that curls round objects, and a white claw that may ball up right into a fist to seize objects.

To manufacture these eye-catching mechanisms, Xstrings permits customers to completely customise their designs in a software program program, sending them to a multi-material 3D printer to carry that creation to life. You’ll be able to robotically print all of the machine’s components of their desired areas in a single step, together with the cables operating by way of it and the joints that allow its supposed movement.

MIT CSAIL postdoc and lead creator Jiaji Li says that Xstrings can save engineers time and vitality, lowering 40% of complete manufacturing time in comparison with doing issues manually. “Our modern methodology might help anybody design and fabricate cable-driven merchandise with a desktop bi-material 3D printer,” says Li.

A brand new twist on cable-driven fabrication

To make use of the Xstrings program, customers first enter a design with particular dimensions, like an oblong dice divided into smaller items with a gap in the midst of each. You’ll be able to then select which means its components transfer by choosing completely different “primitives:” bending, coiling (like a spring), twisting (like a screw), or compressing—and the angle of those motions.

For much more elaborate creations, customers can incorporate a number of primitives to create intriguing combos of motions. If you happen to wished to make a toy snake, you would embrace a number of twists to create a “sequence” combo, by which a single twine drives a sequence of motions. To create the robotic claw, the crew embedded a number of cables right into a “parallel” mixture, the place a number of strings are embedded, to allow every finger to shut up right into a fist.

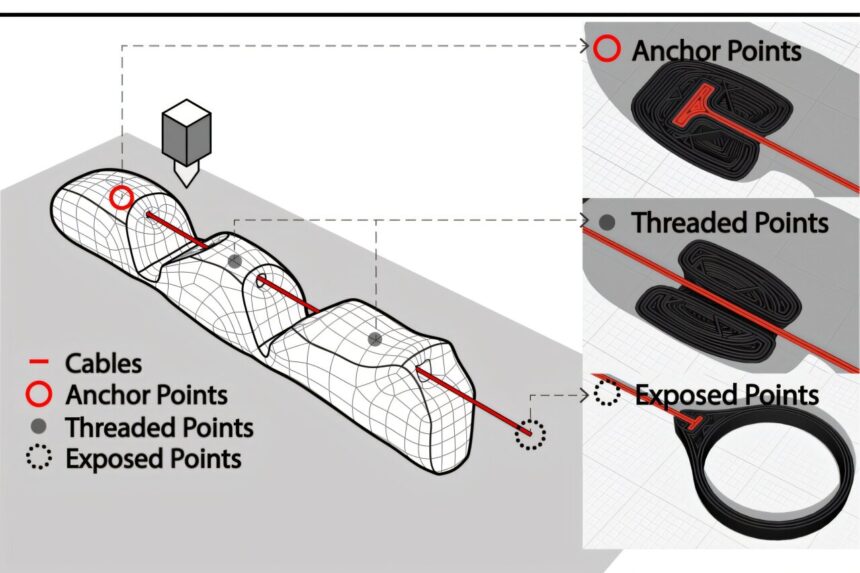

Past fine-tuning the way in which cable-driven mechanisms transfer, Xstrings additionally facilitates how cables are built-in into the item. Customers can select precisely how the strings are secured, when it comes to the place the “anchor” (endpoint), “threaded areas” (or holes inside the construction that the twine passes by way of), and “uncovered level” (the place you’d pull to function the machine) are positioned. With a robotic finger, as an example, you would select the anchor to be positioned on the fingertip, with a cable operating by way of the finger and a pull tag uncovered on the different finish.

Xstrings additionally helps numerous joint designs by robotically inserting parts which are elastic, compliant, or mechanical. This permits the cable to show as wanted because it completes the machine’s supposed movement.

Driving distinctive designs throughout robotics, artwork, and past

As soon as customers have simulated their digital blueprint for a cable-driven merchandise, they’ll carry it to life through fabrication. Xstrings can ship your design to a fused deposition modeling 3D printer, the place plastic is melted down right into a nozzle earlier than the filaments are poured out to construct buildings up layer by layer.

Xstrings makes use of this system to put out cables horizontally and construct round them. To make sure their methodology would efficiently print cable-driven mechanisms, the researchers fastidiously examined their supplies and printing situations.

For instance, the researchers discovered that their strings solely broke after being pulled up and down by a mechanical machine greater than 60,000 occasions. In one other take a look at, the crew found that printing at 260 levels Celsius with a pace of 10-20 millimeters per second was splendid for producing their many artistic objects.

“The Xstrings software program can carry a wide range of concepts to life,” says Li. “It allows you to produce a bionic robotic machine like a human hand, mimicking our personal gripping capabilities. You can too create interactive artwork items, like a cable-driven sculpture with distinctive geometries, and garments with adjustable flaps. Someday, this expertise might allow the speedy, one-step creation of cable-driven robots in outer house, even inside extremely confined environments corresponding to house stations or extraterrestrial bases.”

The crew’s method affords loads of flexibility and a noticeable pace enhance to fabricating cable-driven objects. It creates objects which are inflexible on the surface, however comfortable and versatile on the within; sooner or later, they could look to develop objects which are comfortable externally however inflexible internally, very like people’ pores and skin and bones. They’re additionally contemplating utilizing extra resilient cables, and, as an alternative of simply printing strings horizontally, embedding ones which are angled and even vertical.
