It’s nearly unattainable to disregard mains inline connectors when coping with electrical initiatives. These small instruments are essential to any electrical setup, particularly the place flexibility, security, and sturdiness are essential.
Nevertheless, completely different electrical setups have diverse necessities, which suggests there are several types of connectors. When selecting a mains inline connector, it is advisable guarantee it matches the duty to keep away from poor efficiency, overheating, and security hazards.
On this information, we’ll assist what to search for primarily based in your setup.
What’s a mains inline connector?

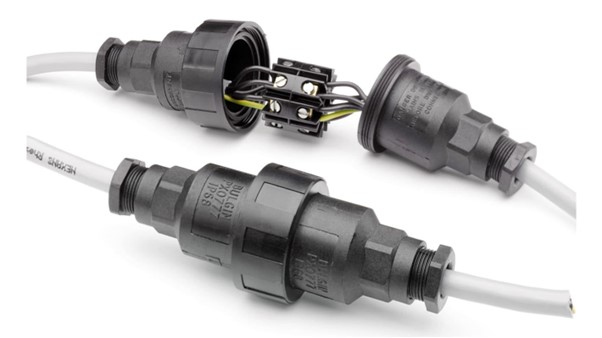

A mains inline connector is principally used to attach two energy cables, sometimes once you wish to lengthen mains electrical energy from one level to a different. As an alternative of hardwiring or operating lengthy extension leads, the connector offers you a cleaner, safer, and extra versatile answer.
A typical use case for these connectors is making a safety-compliant connection between an influence supply and tools that’s away from mounted energy retailers. It may be both indoor or out of doors environments, comparable to development tools or occasion setups.
What makes inline connectors widespread and super-useful is that they’re fairly sensible. They often embody:
- A plug-and-socket system that permits you to reverse the connection if wanted.
- Cable grips to carry the wires securely in place.
- Insulated housing that helps preserve customers protected from electrical contact.
Since they’re utilized in completely different setups, they arrive in diverse styles and sizes.
The 2 principal sorts
Mains inline connectors are grouped into two principal classes: two-pin and three-pin connectors. Every is designed for a unique class of home equipment, so understanding the distinction is essential.
Two-pin inline connectors
Two-pin inline connectors are used with Class 2 home equipment. These are often double-insulated, and so they don’t require an earth connection. They’re most typical in setups that require low energy, comparable to signages and LED lighting techniques.
Two-pin inline connectors are simple to make use of, however it is advisable be certain that the home equipment you join don’t require grounding.
Three-pin inline connectors
Three-pin inline connectors are made for Class 1 home equipment. These are units that should be earthed, often as a result of they use excessive voltage or have metallic casings. They embody refrigeration models, HVAC techniques, and industrial tools.
The third pin, which types a triangle with the 2 energy pins, is a devoted earth pin meant to make sure safety from energy shocks. The connectors often have a extra rugged design and sometimes provide extra safety, like splash resistance.
How to decide on the fitting principal inline connector
Selecting the best inline connector relies on the job, so that you’ll must ask your self a couple of sensible questions. What kind of equipment are you connecting? In what setting will the connector be used? How a lot energy might want to go via it?
Answering these will allow you to match the connector to the use and security necessities of the setup.
Listed below are the particular issues:
- Equipment class: If the machine is double insulated, you solely want a two-pin connector. If it has a metallic casing or makes use of loads of energy, you want a three-pin possibility.
- Indoor or out of doors use: Verify the waterproof rating if you’re engaged on an outside undertaking or in a moist setting. IP65 will shield it from splashes. IP67 will probably be ok for momentary submersion, however you want IP68 for max safety from water.
- Sturdiness: If the connector will probably be uncovered to put on and tear in a high-movement space, select one with a rugged casing and built-in pressure aid.
- Cable dimension compatibility: Ensure the connector matches effectively with the diameter of your cable. If it’s too unfastened, there’s a security threat. If it’s too tight, you’ll battle to put in it.
- Voltage and present ranking: At all times match the connector’s specs with the machine’s energy necessities. Overloading can result in overheating and even failure.
Earlier than you choose an inline connector, take your time and undergo the machine, setting, and energy necessities. This can allow you to select the fitting connector and guarantee your connection is secure, protected, and dependable.
