Ultra-thin 3D display delivers wide-angle, highly-detailed images

Researchers have developed an ultra-thin 3D show with a large viewing angle, clear picture high quality and vivid show depth. By overcoming tradeoffs that sometimes restrict glasses-free 3D shows, the advance might open new potentialities for extremely detailed interactive experiences in well being care, schooling and leisure.

“The brand new show is simply 28 mm thick, dramatically slimmer than typical directional backlight techniques, which usually exceed 500 mm,” mentioned analysis group chief Xu Liu, from Zhejiang College in China. “This stage of compactness, mixed with the substantial increase in decision we achieved, represents an necessary step towards making the expertise sensible for real-world merchandise.”

In Optica, the researchers exhibit an ultra-slim 32-inch directional backlight-based prototype primarily based on the brand new show design. The prototype is roughly the scale of a big pc monitor, has a large viewing angle of over 120° and a big 3D show quantity of 28 × 16 × 39 inches.

“The 3D show maintains crisp picture high quality throughout the whole imaging depth, which can assist customers visualize depth and spatial relationships for duties requiring exact spatial understanding,” mentioned Rengmao Wu from Zhejiang College, corresponding creator of the paper. “This might, for instance, assist docs simply see advanced anatomical constructions similar to tumors or fractures in actual time.”

Seeing 3D with out glasses

3D mild discipline shows create a scene by utilizing a directional backlight to direct mild in a extremely managed method. This design permits every eye to see a barely completely different picture, making a pure sense of depth with out requiring the viewer to put on 3D glasses. The standard of the rendered 3D impact relies on how precisely the voxels—the 3D pixels that make up the picture—are constructed, in addition to on their quantity and dimension, since smaller, well-constructed voxels allow finer element and extra reasonable depth.

“In mild discipline shows using diffraction gratings or cylindrical lens arrays, voxel dimension is basically constrained by the angular unfold of backlight illumination,” mentioned Xinzhu Sang from Beijing College of Posts and Telecommunications in China, who made key contributions to the work. “Our system considerably improves voxel building accuracy in comparison with present scattering backlight-based 3D shows, reaching extremely miniaturized voxels and substantial decision enhancement.”

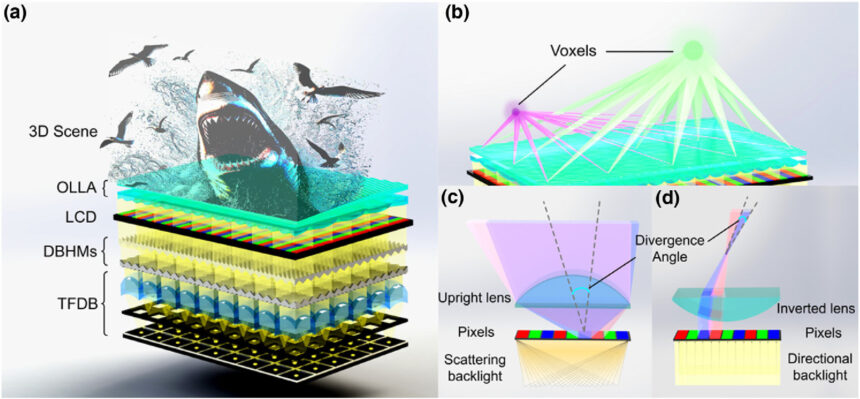

Freeform optics—superior optical parts that use freeform surfaces to exactly management mild—supplied the design flexibility wanted to create the ultra-slim but expansive directional backlight system. Every beam-shaping channel of the show integrates an LED supply, an aperture and a freeform lens that exactly redirects incident mild to generate uniform illumination with exact directionality. The researchers tiled these beam-shaping channels to create a tailor-made large-area directional backlight system. The show additionally makes use of a module consisting of two layers of micro-triangular prisms to considerably enhance backlight irradiance uniformity whereas preserving the directionality.

Clear positive aspects over typical shows

After making a 32-inch prototype primarily based on the brand new design, the researchers evaluated its efficiency utilizing a 50-mm fixed-focus lens with an f/2.8 aperture, a setup usually used to simulate how the human eye perceives depth and readability.

In a single experiment, they used the ultra-thin 3D light-field show to render photographs of an astronaut floating outdoors an area station. The show exhibited a steady depth vary of 1 m and a viewing angle of greater than 120°, offering an immersive and reasonable visible expertise.

Additionally they in contrast the brand new design with typical scattering backlight shows, discovering that it produced six instances smaller voxels and maintained decision even when seen from farther away. The show was additionally about 100-fold extra environment friendly at utilizing visible data to generate photographs than scattering backlight shows.

The researchers at the moment are working to additional scale back the thickness and weight of the system whereas enhancing its optical effectivity. For commercialization, they level out that extra work is required to develop smaller pixel constructions, improve pixel density and optimize pixel form to reinforce compatibility with 3D show expertise.
