Tiny explosions and soft materials make onscreen braille more robust

From texting on a wise telephone to ordering practice tickets at a kiosk, contact screens are ubiquitous and, normally, comparatively dependable. However for people who find themselves blind or visually impaired and use digital braille gadgets, the know-how will be susceptible to the weather, simply damaged or clogged by filth, and tough to restore.

By combining the design rules and supplies of soppy robotics with microscale combustions, Cornell researchers have now created a high-resolution digital tactile show that’s extra strong than different haptic braille techniques and might function in messy, unpredictable environments.

The know-how additionally has potential purposes in teleoperation, automation and will deliver extra tactile experiences to digital actuality.

The analysis is published in Science Robotics. The paper’s co-first authors are Ronald Heisser, Ph.D. ’23 and postdoctoral researcher Khoi Ly.

“The central premise of this work is two-fold: utilizing vitality saved in fluid to cut back the complexity of mass transport, after which thermal management of strain to take away the necessities of complicated valving,” stated Rob Shepherd, the John F. Carr Professor of Mechanical Engineering in Cornell Engineering and the paper’s senior creator.

“Very small quantities of flamable gasoline permit us to create high-pressure actuation for tactile suggestions wherever we like utilizing small fluid channels, and cooling the gasoline in the course of the response means this strain stays localized and doesn’t create strain the place we don’t want it,” he stated. “This chemical and thermal method to tactile suggestions solves the long-standing “Holy Braille’ problem.”

The vast majority of refreshable digital tactile shows include dozens of tiny, intricate parts in a single braille cell, which has six raised dots. Contemplating {that a} web page of braille can maintain upwards of 6,000 dots, that provides as much as a variety of shifting elements, all vulnerable to being jostled or broken. Additionally, most refreshable shows solely have a single line of braille, with a most of roughly 40 characters, which will be extraordinarily limiting for readers, in response to Heisser.

“Now individuals need to have multi-line shows so you may present photos, or if you wish to edit a spreadsheet or write laptop code and skim it again in braille,” he stated.

Somewhat than counting on electromechanical techniques—akin to motors, hydraulics or tethered pumps—to energy their tactile shows, Shepherd’s Natural Robotics Lab has taken a extra explosive method: micro combustion. In 2021, they unveiled a system wherein liquid metallic electrodes prompted a spark to ignite a microscale quantity of premixed methane and oxygen. The fast combustion compelled a haptic array of densely packed, 3-millimeter-wide actuators to trigger molded silicone membrane dots—their kind decided by a magnetic latching system—to pop up.

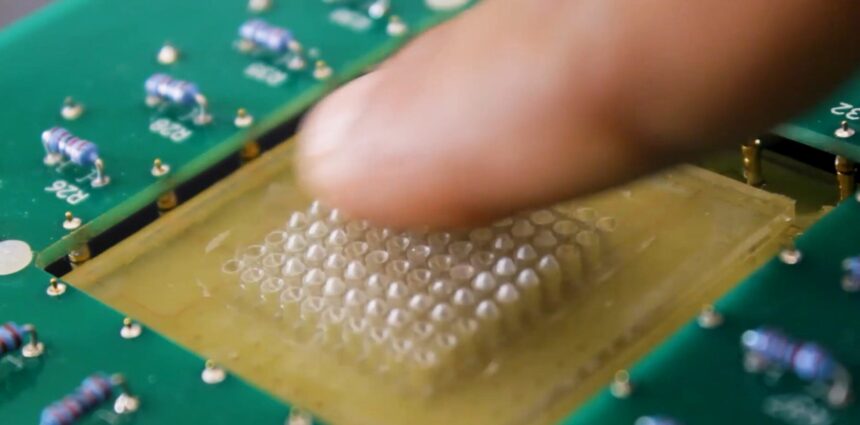

For the brand new iteration, the researchers created a 10-by-10-dot array of 2-millimeter-wide delicate actuators, that are eversible—i.e., capable of be turned inside out. When triggered by a mini combustion of oxygen and butane, the dots pop up in 0.24 milliseconds and stay fastened in place by advantage of their domed form till a vacuum sucks them down. The untethered system maintains the magnificence of soppy robotics, Heisser stated, leading to one thing that’s much less cumbersome, cheaper and extra resilient—”far past what typical braille shows are like.”

“We opted to have this rubber format the place we’re molding separate parts collectively, however as a result of we’re sort of molding it multi functional go and adhering all the things, you might have sheets of rubber,” stated Heisser, presently a postdoctoral researcher on the Massachusetts Institute of Know-how. “So now, as a substitute of getting 1,000 shifting elements, we simply have a couple of elements, and these elements aren’t sliding towards one another. They’re built-in on this means that makes it less complicated from a producing and use standpoint.”

The silicone sheets could be replaceable, extending the lifespan of the machine, and might be scaled as much as embrace a bigger variety of braille characters whereas nonetheless being comparatively transportable. The hermetically sealed design additionally retains out filth and troublesome liquids.

“From a upkeep standpoint, if you wish to give somebody the power to learn braille in a public setting, like a museum or restaurant or sports activities sport, we predict this type of show could be far more applicable, extra dependable,” Heisser stated. “So somebody spills beer on the braille show, is it going to outlive? We expect, in our case, sure, you may simply wipe it down.”

Any such know-how has quite a few medical and industrial purposes wherein the sense of contact is necessary, from mimicking muscle to offering high-resolution haptic suggestions throughout surgical procedure or from automated machines, along with rising accessibility and literacy for people who find themselves blind or visually impaired.

“As applied sciences turn into an increasing number of digitized, as we rely an increasing number of on laptop entry, human-computer interplay turns into important,” Heisser stated. “Studying braille is equal to literacy. The workaround has been screen-reading applied sciences that mean you can work together with the pc, however do not encourage your cognitive fluency.”
