System turns simple sketches into digital schematics

Many merchandise within the trendy world are not directly fabricated utilizing laptop numerical management (CNC) machines, which use computer systems to automate machine operations in manufacturing. Whereas easy in idea, the methods to instruct these machines is, in actuality, usually advanced.

A workforce of researchers, together with these from the College of Tokyo, devised a system to show tips on how to mitigate a few of this complexity. The work is published within the journal Proceedings of the 2025 CHI Convention on Human Components in Computing Techniques.

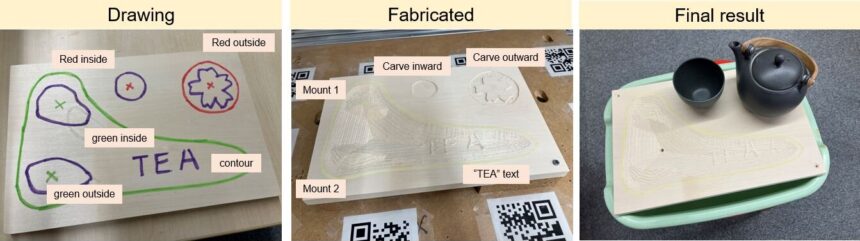

Draw2Cut permits customers to attract desired designs straight onto materials to be reduce or milled. On this case, color-coded strains drawn with normal marker pens instruct the Draw2Cut system to mill designs into wooden with none prior data of CNC machines or their typical workflows.

Varied applied sciences could be mentioned to democratize some ability or potential that was beforehand solely accessible to these with time, cash, luck, or all three. Plows, tractors, the printing press, the web—the listing goes on. Lately, issues like 3D printing have been touted to convey bespoke high-quality manufacturing into the house.

Although it is but to be seen how reasonable that’s, it highlights the actual want many individuals have to specific better management over the issues they want. 3D printing is, in fact, only one mode of digital fabrication, and in lots of extra circumstances, fabricated gadgets are nonetheless usually made utilizing extra established strategies using molds or CNC machines. Regardless of being properly established, utilizing CNC machines is much from trivial.

“Working CNC milling machines could be tough as a result of it often requires customers to first create 3D fashions utilizing computer-aided design (CAD) software program,” mentioned Challenge Assistant Professor Maria Larsson on the College of Tokyo’s Consumer Interface Analysis Group.

“Our newest analysis explores the concept, in a number of conditions, it could be good if the person may simply draw straight onto supplies they need the CNC machine to mill and reduce, with out modeling something in CAD. We have been impressed by the best way by which carpenters mark wooden for reducing, and thought, why cannot we do an identical system for private fabrication?”

To this finish, Larsson and her workforce created Draw2Cut, primarily a novel imaginative and prescient system coupled with an intuitive workflow and easy set of steps to comply with so as to create CAD plans for CNC machines. Assuming somebody has an thought for the merchandise they wish to create, they’ll use a particular set of colours to attract their design straight onto some materials. Draw2Cut then pictures the fabric and sketches and interprets the imaginative and prescient knowledge to create 3D CAD plans to export to a CNC machine.

The machine could be fed the precise piece of fabric the person drew on and can reduce and mill accordingly. Although they’ve solely experimented with wooden, totally different CNC machines can work on totally different supplies, together with even steel if wants be.

“Probably the most difficult a part of this challenge was tips on how to implement this workflow in observe. We discovered the important thing ingredient was to develop a drawing language the place symbols and colours are assigned numerous meanings, so as to produce unambiguous machine directions,” mentioned Larsson.

“On this case, purple strains mark the overall form of a path to mill, purple and inexperienced marks and features then present directions to chop straight down into the fabric or as a substitute produce gradients, respectively. Although, as with every challenge interfacing the actual and digital worlds, we additionally confronted the problem of getting our digicam arrange proper and calibrating issues earlier than attaining an appropriate precision of reducing, inside roughly 1 millimeter.”

Whereas Draw2Cut shouldn’t be fairly capable of create gadgets to the diploma of high quality a seasoned skilled may produce, its most important intention is to not substitute folks however to open up this mode of manufacture to extra folks, one of many broader themes of the Consumer Interface Analysis Group.

“We concerned a spread of contributors in designing and refining Draw2Cut. Specifically, we discovered that Draw2Cut lowers the entry barrier for novice customers, even kids,” mentioned Larsson.

“Knowledgeable customers too may profit from being extra capable of swiftly categorical their design intent. And we intention to increase the chances with a broader vary of stroke patterns and symbols sooner or later. It is also doable to customise the colour language for various wants. Our supply code is open supply, so builders with totally different wants can customise it accordingly.”
