Students develop novel multi-metal 3D printing process

College students at ETH Zurich have developed a laser powder mattress fusion machine that follows a round software path to print spherical parts, which permits the processing of a number of metals directly. The system considerably reduces manufacturing time and opens up new potentialities for aerospace and trade. ETH has filed a patent utility for the machine, and the outcomes are published within the CIRP Annals.

In the present day, nearly all trendy rocket engines depend on 3D printing to maximise their efficiency with tight coupling between construction and performance. College students at ETH Zurich have now constructed a high-speed multi-material metallic printer: a laser powder mattress fusion machine that rotates the powder deposition and gasoline circulation nozzles whereas it prints, which suggests it might probably course of a number of metals concurrently and with out course of lifeless time. The machine might basically change the 3D printing of metallic elements, leading to important reductions in manufacturing time and value.

The group of six Bachelor’s college students of their fifth and sixth semesters developed the brand new machine within the Superior Manufacturing Lab underneath the steerage of ETH Professor Markus Bambach and Senior Scientist Michael Tucker as a part of the Focus Undertaking RAPTURE. In a mere 9 months, the scholars realized, constructed and examined their thought. The machine is especially aimed toward functions in aerospace that includes roughly cylindrical geometries, equivalent to rocket nozzles and turbomachinery, however can also be of broad curiosity for mechanical engineering.

Offering entry to superior know-how

Undertaking lead Tucker explains that the challenge took place from a really particular problem: growing bi-liquid-fueled rocket nozzles for ARIS, the Swiss Educational House Initiative, that’s constructing its personal rockets with visions of reaching into house. Throughout the subsequent few years, ARIS goals to achieve the Kármán Line—the internationally acknowledged boundary of house set at an altitude of 100 kilometers, past which the ambiance is just too skinny to help flight by plane with out particular propulsion.

So as to stand up to the extreme warmth and strain over an prolonged launch, rocket nozzles ought to ideally be made from a number of metals. For instance, their inside may be made from heat-conducting copper with built-in cooling channels and their exterior of a heat-resistant nickel alloy. “For small gamers like our scholar rocket group, this kind of multi-material know-how has thus far been too complicated and too costly, placing it out of attain,” says Tucker.

Rotational 3D printing

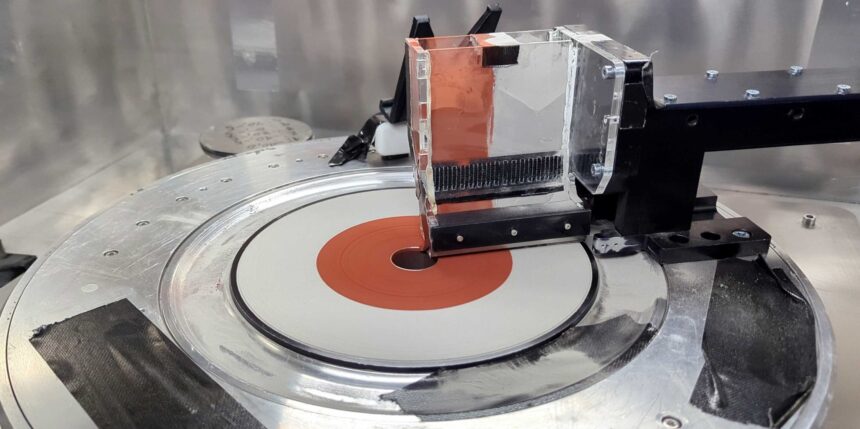

The guts of the brand new machine is a rotating platform that permits a high-speed printing course of. In contrast to standard rectilinear laser powder mattress fusion machines, the place a brand new layer of powder needs to be utilized after every layer is melted, the RAPTURE machine works continuous because of its rotating platform. Because of this powder is utilized and fused by the laser concurrently, which considerably enhances productiveness. This reduces the manufacturing time for cylindrical parts by greater than two thirds.

“This course of is ideally suited to rocket nozzles, rotating engines and lots of different parts within the aerospace trade,” says Tucker. “They usually have a big diameter however very skinny partitions,” he provides. Whereas the machine can also be able to producing non-axisymmetric and even arrays of elements, the rotating technique is especially efficient for producing exactly this geometry.

Printing two metals concurrently

The rotating machine can course of two completely different metals in a single operation. Standard techniques require a number of steps and a a lot larger amount of metallic powder. As separation and restoration of blended powder stays an open problem, right now a lot of this powder turns into waste. The brand new technique solely deposits the fabric the place it’s really wanted throughout the part, thereby decreasing waste.

The machine encompasses a mechanism that blows inert gasoline over the world the place the powder is fused. This prevents the part from oxidizing whereas it’s being printed. Soot, spatter and different by-products are systematically extracted by way of an outlet. “At first we underestimated the extent to which the gasoline circulation mechanism impacts product high quality,” says Tucker. “Now we all know it is essential.” Because of the rotating structure of the newly developed machine, the native gasoline circulation situations may be managed rather more tightly than with a traditional machine.

Personalized quite than commonplace parts

The scholars confronted quite a few technical challenges when growing the novel laser powder mattress fusion machine, one among which concerned the synchronization of the scanning laser with the rotation of the gasoline inlet and powder provide. As well as, as most of the elements wanted for the machine usually are not commercially obtainable, the group designed their very own. These embody a rotatable connection for the gasoline inlet and a system that robotically refills the powder throughout operation.

Nonetheless, the group of scholars has managed to construct a machine that just about seems prepared for industrial utility. For Tucker, this was one of many highlights of the Focus challenge: “The truth that a group of scholars developed and constructed a functioning machine in 9 months is fairly outstanding.”

Potential for aerospace, e-mobility and extra

In addition to concrete functions for ARIS and for the aerospace trade basically, the group sees potential functions in different sectors, equivalent to in plane and gasoline generators, and for electrical motors the place ring-shaped geometries are the norm. Owing to its novelty and great industrial potential, a patent utility was filed by ETH masking the rotary multi-material laser powder mattress fusion know-how, which has since been nominated for the ETH Spark Award.

The parts manufactured to this point with the prototype have a diameter of as much as 20 centimeters. The analysis group is now scaling the method to greater speeds and bigger diameters, and they’re presently in search of trade companions to collaborate with them to additional develop and deploy this revolutionary know-how.
