Self-healing coating lets Nd-Fe-B magnets resist saltwater, ice and mechanical damage

Since their discovery hundreds of years in the past, magnets have fascinated humankind with their distinctive properties. Even at this time, scientists are learning and discovering new purposes for these supplies.

In 1984, the event of neodymium-iron-boron (Nd-Fe-B) magnets revolutionized this subject. Recognized for his or her unparalleled magnetic power, these magnets have now turn into ubiquitous, serving as vital parts in renewable vitality programs and superior electronics.

Nonetheless, their susceptibility to degradation underneath moisture, salt spray, and temperature fluctuations has, so far, strongly restricted their deployment in harsh environments. Conventional protecting coatings corresponding to Ni-Cu-Ni, Zn, and epoxy resin typically fail underneath extended publicity, resulting in catastrophic magnet failure.

To beat these challenges, a workforce of researchers from the Institute of Superior Magnetic Supplies at Hangzhou Dianzi College, led by Dr. Zhen Shi (first creator) and Prof. Xuefeng Zhang (corresponding creator), has developed a “slippery liquid-infused porous floor” (SLIPS) coating for Nd-Fe-B magnets by means of a multi-dimensional design technique.

The workforce’s work is published within the journal Small.

Elaborating on their findings, Prof. Zhang says, “This expertise may revolutionize motor purposes, starting from aerospace programs to deep-sea robotics and polar infrastructure, by stopping saltwater, humidity, and temperature fluctuation-induced magnet degradation. Furthermore, we will considerably lengthen motor lifespans whereas lowering upkeep prices.”

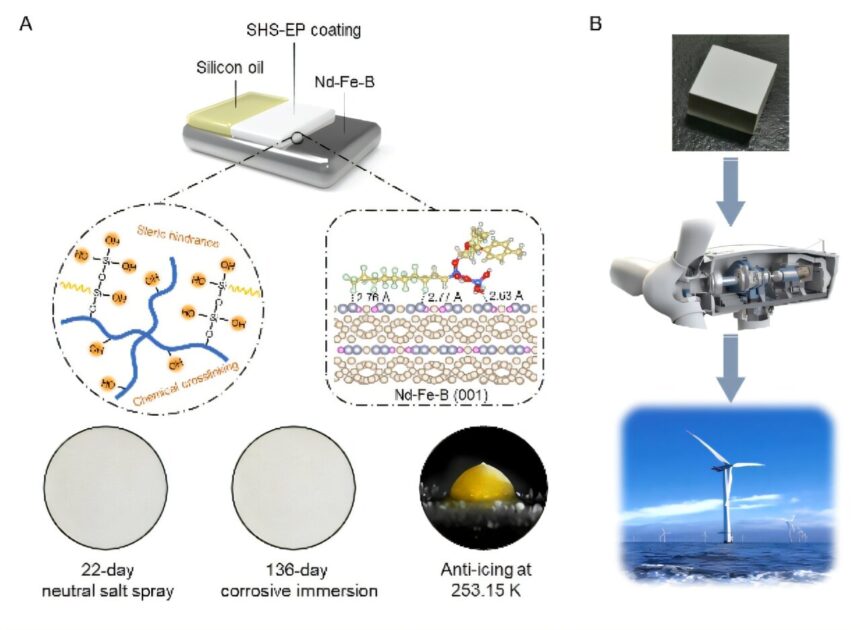

On this examine, the workforce chemically engineered silica nanoparticles to kind a dense polymer community with enhanced interfacial adhesion and locked lubricant movie. Consequently, the resultant coating allows Nd-Fe-B magnets to withstand corrosion, humidity, mechanical stress, and excessive temperatures with unprecedented sturdiness.

By means of in depth experimentation, the researchers discovered that there was no corrosion detected even after 136-day immersion in 3.5 wt.% saltwater. Moreover, the novel SLIPS coating delays ice formation with a 10-fold longer freezing time and reduces ice adhesion power by 75% at -20°C, in addition to repairs mechanical scratches autonomously and restores floor performance.

In comparison with industrial Ni-Cu-Ni, Zn, and epoxy resin coatings, SLIPS coating demonstrates super-stable corrosion safety for Nd-Fe-B magnets. In electrochemical experiments, the impedance modulus of SLIPS coating at 0.1 Hz may be maintained at 3.31×10⁸ Ω·cm² even after 132-day immersion, far surpassing that of business coatings. Notably, the impedance modulus of all industrial coatings deteriorated inside 14 days.

Dr. Shi briefly highlights the technological impression of this new coating, explaining, “Our multidimensional design bridges the hole between laboratory innovation and real-world purposes. By addressing corrosion and icing concurrently, we’ve remodeled Nd-Fe-B magnets into dependable parts even for probably the most demanding environments.”

Lastly, the analysis workforce additional famous that the self-healing functionality of the SLIPS coating ensures longevity even after bodily harm, a vital function for mission-critical programs in distant or inaccessible places.

Whereas initially examined for offshore wind generators, the robustness of the proposed expertise suggests transformative potential throughout numerous industries. Aerospace engineers may leverage these magnets for light-weight, high-efficiency motors in satellites, whereas polar analysis tools and deep-sea exploration instruments using this innovation may obtain unprecedented reliability.

Offered by
Hangzhou Dianzi College
