Observing microscopic dislocations form in real-time during 3D metal printing

Researchers used Argonne’s Superior Photon Supply to seize how the microstructure of metals evolves in actual time throughout 3D printing. The findings may pave the best way for superior manufacturing of parts for aerospace, protection and power.

In a type of additive manufacturing, complicated steel components are constructed one ultra-thin layer at a time—much like frosting a cake, however with far better precision and intricacy. This system permits for the printing of 3D components which can be troublesome or inconceivable to make utilizing conventional strategies. It additionally gives a path ahead to ease provide chain disruptions and modernize home manufacturing.

Additive manufacturing is already used to supply steel parts for essential sectors like aerospace, well being care and protection. However a serious problem stays: attaining constant high quality and repeatability from half to half.

Now, in a serious scientific advance, researchers on the U.S. Division of Vitality’s (DOE) Argonne Nationwide Laboratory, DOE’s Oak Ridge Nationwide Laboratory and universities have noticed how the microstructure of metals modifications in real-time throughout 3D printing. This breakthrough was made potential by Argonne’s Superior Photon Supply (APS), a DOE Workplace of Science consumer facility.

The findings had been printed in Nature Communications.

The workforce investigated an additive manufacturing method by which a laser quickly melts a skinny steel wire. Because the steel melts, it’s deposited on the earlier layer after the primary, adopted nearly immediately by cooling and solidification. This course of is repeated layer by layer to create intricate parts. Beforehand, scientists may solely analyze the microstructures of those parts after the printing course of was completed.

“Metals are fabricated from atoms organized in ordered crystal constructions,” mentioned Tao Solar, the challenge’s lead investigator and a professor at Northwestern College who additionally holds a joint appointment at Argonne.

“However underneath speedy heating and cooling, some atoms fall out of alignment. These defects—referred to as dislocations—can strengthen or weaken the ultimate half.”

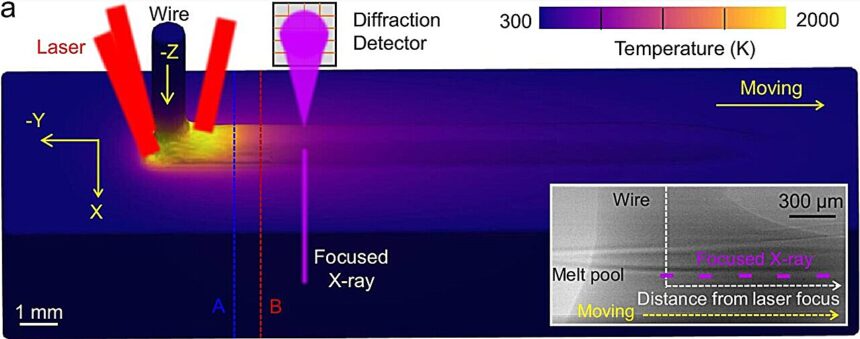

Utilizing beamline 1-ID-E on the APS, the workforce performed 3D printing of 316L chrome steel, a generally used structural alloy. They tracked the printing course of with real-time X-ray diffraction, immediately measuring how and when dislocations type and unfold.

“Our evaluation reveals how highly effective the APS is for learning defects that had been beforehand solely seen by way of after-the-fact evaluation,” mentioned Andrew Chuang, a physicist at APS. “That is the primary time this real-time method has been utilized to this laser-based technique to check the dislocation evolution in a steel wire.”

The info revealed that dislocations type early, simply because the steel modifications from liquid to stable. It was beforehand thought that they type later as stresses construct up throughout cooling and solidification. A key issue was a particular response by which two stable phases type on the identical time from the liquid, making a excessive density of dislocations.

This deeper understanding may assist engineers enhance the energy and reliability of 3D-printed components. By adjusting printing variables, builders would be capable to exactly management the formation of dislocations on the microscopic stage. By this implies, they may take full benefit of the dislocations’ helpful attributes whereas minimizing the detrimental ones.

The insights gained may additionally spur the event of recent alloys. Adjusting the chemical make-up of stainless steels—for instance, by tweaking the ratios of chromium or nickel, or by including components like aluminum—can affect how dislocations type and the way stress is distributed.

“This kind of 3D printing may create custom-made steel components which can be dependable and extra-strong and would survive excessive circumstances,” mentioned Lin Gao, a postdoctoral researcher within the Nuclear Science and Engineering division at Argonne.

“It could be key to constructing superior steel parts for next-generation nuclear reactors now being designed at Argonne and different labs.”
