New non-volatile memory platform built with covalent organic frameworks

Researchers at Institute of Science Tokyo have created a brand new materials platform for non-volatile reminiscences utilizing covalent natural frameworks (COFs), that are crystalline solids with excessive thermal stability. The researchers efficiently put in electric-field-responsive dipolar rotors into COFs.

Because of the distinctive construction of the COFs, the dipolar rotors can flip in response to an electrical subject with out being hampered by a steric hindrance from the environment, and their orientation will be held at ambient temperature for a very long time, that are crucial situations for non-volatile reminiscences. The examine is published within the Journal of the American Chemical Society.

People have made nice efforts to document data by inventing recording media equivalent to clay, paper, compact disks, and semiconductor reminiscences. Because the bodily entity that holds data—equivalent to indentations, characters, pits, or transistors—turns into smaller and its areal density turns into increased, the data is saved with increased density. In rewritable reminiscences, the category referred to as “non-volatile reminiscences” are appropriate for storing information for a very long time, equivalent to for days and years.

Just lately, molecular know-how has developed. One class of molecular know-how consists of molecules that exhibit mechanical motions. They’re referred to as “molecular machines” or “nanomachines.” If a mechanical entity rotates or flips round a chemical bond, which serves as an axis, the fabric class is especially referred to as “molecular rotors.”

Use of molecular rotors to retailer data might trigger a breakthrough. It is because the dimensions of molecules is a number of orders of magnitude smaller than the sizes of pits in a compact disk and transistors in semiconductor reminiscences, and natural molecules are inherently extremely designable. Though functions utilizing molecular machines have been explored extensively, the makes an attempt to develop non-volatile reminiscences have been scarce, primarily as a result of the simultaneous satisfaction of the next three requisites has been so difficult.

1. To manage the orientation of molecular rotors with an electrical subject, the rotors need to have a dipole—a spatial displacement of a optimistic cost and a unfavorable cost crucial to realize a drive from the utilized electrical subject.
2. The rotors should not flip at ambient temperatures in order that their orientations are held for a protracted interval.
3. There have to be enough areas across the rotors in order that they will flip with out being hampered by the steric hindrance which may be attributable to the tight packing of the molecules within the strong section. Moreover, the substance needs to be warmth sturdy as much as the temperatures present computational parts ordinarily endure, which is usually as much as 150°C.

New supplies developed by the researchers of Institute of Science Tokyo have achieved these three requisites concurrently, with very excessive thermal sturdiness as much as close to 400°C. By demonstrating these novelties for the primary time, the researchers have created a fabric basis for molecular-machine-based non-volatile reminiscences that doubtlessly retailer data at increased density than present applied sciences.

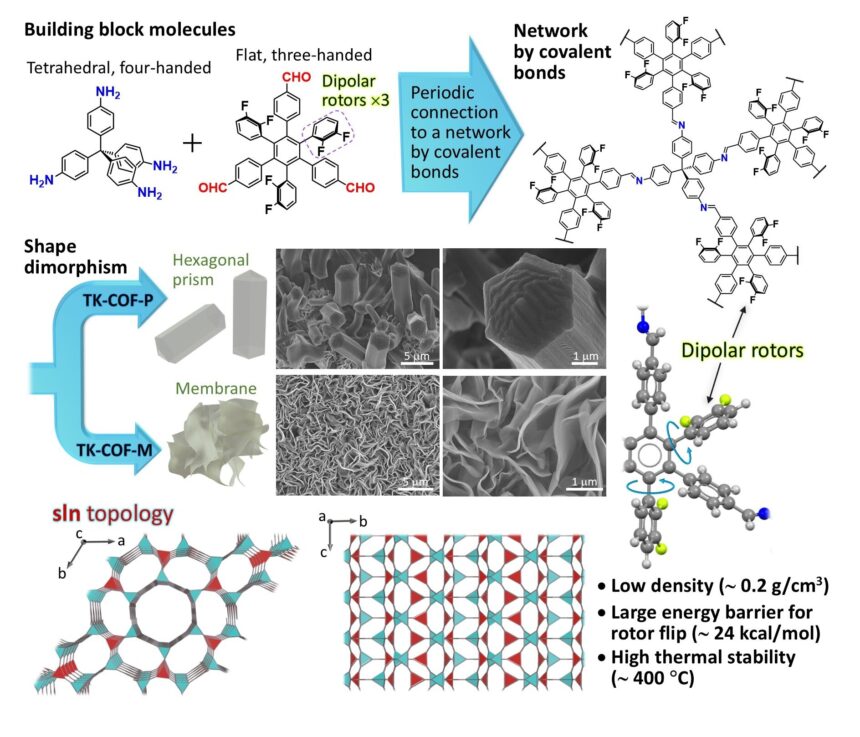

The researchers chosen covalent natural frameworks (COFs) as a platform for the goal. COFs are an rising class of crystalline solids fashioned by periodically connecting two sorts of constructing block molecules by covalent bonds. For one constructing block, they selected a tetrahedral, four-handed molecule. For the opposite constructing block, they newly developed a flat, three-handed molecule during which three dipolar rotors (1,2-difluorophenyl, DFP) and three aryl teams are alternately positioned across the central benzene ring.

Beforehand, these aryl teams had been proven to suppress the flip of the DFP rotors at ambient temperatures in a toluene answer, which happy requisites 1 and a pair of above, however the excessive density of the molecular strong sterically hindered the flip of the rotors within the strong section, which couldn’t fulfill requisite 3.

Curiously, the COFs they developed exhibited an unprecedented form dimorphism, during which the COFs grew to a hexagonal prism form or a membrane form, relying on the solvent composition used for the expansion. Moreover, from X-ray structural analyses, these new COFs turned out to have an unprecedented sln topology, which has a low density inherently and has not been reported for COFs.

“Because of the considerably low density of about 0.2 g/cm³ attributable to the distinctive sln topology possessed by the COFs, the dipole rotors included into the periodic community constituting the COFs have enough areas round them, permitting them to flip with out affected by the steric hindrance from their environment.

“This can be a breakthrough, as a result of our COFs are a uncommon strong during which dipolar rotors can flip when they’re dropped at elevated temperatures above 200°C or endure sufficiently sturdy electrical fields, however their orientations will be held for a very long time at ambient temperatures. These uniquenesses have been realized by our cautious number of the constructing block molecules to create the COFs for this goal,” says Professor Yoichi Murakami, the chief of this challenge.

Moreover, Murakami identified the importance of the work additionally exists within the extension of the variety of COFs by their discoveries of sln topology and form dimorphism, each of which had been unknown for COFs beforehand.

These COF-based solids could also be a brand new platform for storing data with additional increased density after correct scale-up and system demonstration are made subsequently.
