New microgripper technology for electronics assembly

Microgrippers are important instruments for manipulating minute objects, with functions starting from medical biopsies to microassembly in electronics. Nonetheless, conventional microgripper applied sciences have confronted vital limitations, together with reliance on advanced mild sources, excessive voltages, and hulking magnetic methods.

These constraints typically hinder their use in confined or specialised microenvironments. The rising want for extra versatile, environment friendly, and user-friendly microgrippers has pushed current analysis efforts towards overcoming these boundaries.

A group of researchers led by Professor Huikai Xie from Beijing Institute of Expertise not too long ago published their examine in Microsystems & Nanoengineering. This examine was primarily carried out by Prof. Xie’s Ph.D. pupil Hengzhang Yang who’s the primary creator of the paper. Their novel electrothermal microgripper, based mostly on Al-SiO₂ bimorphs, combines outstanding deformation and fast response capabilities whereas consuming minimal energy, providing a promising answer to the challenges confronted by conventional applied sciences.

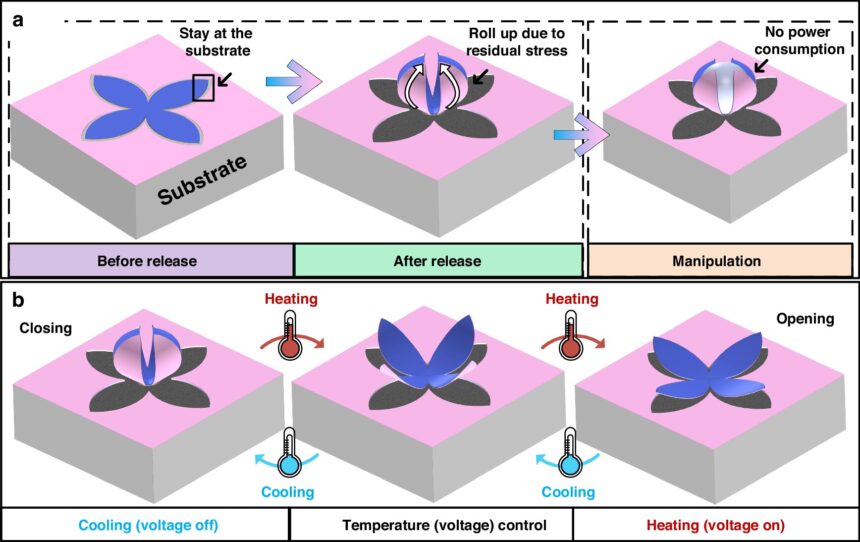

The electrothermal microgripper developed by the group represents a major leap ahead in micro-manipulation expertise. By using Al-SiO₂ bimorphs because the core structural element, the microgripper takes benefit of the thermal enlargement mismatch between aluminum and silicon dioxide to attain vital reversible deformation.

This mechanism permits the microgripper to naturally shut on account of residual stresses, enabling it to carry samples with none energy consumption. Able to bending greater than 100 levels at simply 5 volts, with a response time of beneath 10 milliseconds, the microgripper delivers spectacular pace and accuracy.

Moreover, its potential to understand and manipulate delicate micro-objects, as demonstrated in assessments with PMMA microbeads, proves its robustness. In vibration assessments, it efficiently endured a mean acceleration of 35 g, and in affect assessments, it withstood forces exceeding 1600 g, demonstrating its distinctive energy and reliability.

These options make the microgripper ultimate for precision duties like “pick-and-place” operations, equivalent to dealing with solder beads in digital packaging.

“Electrothermal microgrippers have lengthy been wanted for his or her potential to simplify micro-manipulation duties,” stated by Shuailong Zhang, a professor taking part on this examine. “Our design not solely meets these expectations but in addition exceeds them by providing a degree of precision and reliability that’s unmatched within the discipline.”

Trying to the longer term, the potential functions of this microgripper are huge. Within the electronics business, its precision makes it ultimate for duties equivalent to solder bead placement, the place accuracy is essential. Within the discipline of biomedical engineering, the microgripper may revolutionize minimally invasive procedures, equivalent to biopsies, by enabling the exact dealing with of tissue samples.

Because the expertise continues to evolve, it’s anticipated to spur additional improvements in microscale applied sciences, resulting in extra environment friendly and superior micro-manipulation methods throughout a wide range of sectors.
