New electronic ‘skin’ could enable lightweight night-vision glasses

MIT engineers have developed a method to develop and peel ultrathin “skins” of digital materials. The strategy might pave the best way for brand new lessons of digital units, similar to ultrathin wearable sensors, versatile transistors and computing components, and extremely delicate and compact imaging units.

As an indication, the staff fabricated a skinny membrane of pyroelectric materials—a category of heat-sensing materials that produces an electrical present in response to modifications in temperature. The thinner the pyroelectric materials, the higher it’s at sensing refined thermal variations.

With their new methodology, the staff fabricated the thinnest pyroelectric membrane but, measuring 10 nanometers thick, and demonstrated that the movie is very delicate to warmth and radiation throughout the far-infrared spectrum.

The newly developed movie might allow lighter, extra moveable, and extremely correct far-infrared (IR) sensing units, with potential purposes for night-vision eyewear and autonomous driving in foggy circumstances.

Present state-of-the-art far-IR sensors require cumbersome cooling components. In distinction, the brand new pyroelectric skinny movie requires no cooling and is delicate to a lot smaller modifications in temperature. The researchers are exploring methods to include the movie into lighter, higher-precision night-vision glasses.

“This movie significantly reduces weight and price, making it light-weight, moveable, and simpler to combine,” mentioned Xinyuan Zhang, a graduate scholar in MIT’s Division of Supplies Science and Engineering (DMSE). “For instance, it may very well be straight worn on glasses.”

The warmth-sensing movie might even have purposes in environmental and organic sensing, in addition to imaging of astrophysical phenomena that emit far-infrared radiation.

What’s extra, the brand new lift-off method is generalizable past pyroelectric supplies. The researchers plan to use the strategy to make different ultrathin, high-performance semiconducting movies.

Their outcomes are reported in a paper showing within the journal Nature. The research’s MIT co-authors are first creator Xinyuan Zhang, Sangho Lee, Min-Kyu Track, Haihui Lan, Jun Min Suh, Jung-El Ryu, Yanjie Shao, Xudong Zheng, Ne Myo Han, and Jeehwan Kim, affiliate professor of mechanical engineering and of supplies science and engineering, together with researchers on the College Wisconsin at Madison led by Professor Chang-Beom Eom and authors from a number of different establishments.

Chemical peel

Kim’s group at MIT is discovering new methods to make smaller, thinner, and extra versatile electronics. They envision that such ultrathin computing “skins” might be integrated into every thing from good contact lenses and wearable sensing materials to stretchy photo voltaic cells and bendable shows.

To comprehend such units, Kim and his colleagues have been experimenting with strategies to develop, peel, and stack semiconducting components, to manufacture ultrathin, multifunctional digital thin-film membranes.

One methodology that Kim has pioneered is “distant epitaxy”—a method the place semiconducting supplies are grown on a single-crystalline substrate, with an ultrathin layer of graphene in between. The substrate’s crystal construction serves as a scaffold alongside which the brand new materials can develop.

The graphene acts as a nonstick layer, much like Teflon, making it simple for researchers to peel off the brand new movie and switch it onto versatile and stacked digital units. After peeling off the brand new movie, the underlying substrate might be reused to make extra skinny movies.

Kim has utilized distant epitaxy to manufacture skinny movies with varied traits. In attempting completely different mixtures of semiconducting components, the researchers occurred to note {that a} sure pyroelectric materials, known as PMN-PT, didn’t require an intermediate layer help with a purpose to separate from its substrate.

Simply by rising PMN-PT straight on a single-crystalline substrate, the researchers might then take away the grown movie, with no rips or tears to its delicate lattice.

“It labored surprisingly effectively,” Zhang says. “We discovered the peeled movie is atomically easy.”

Lattice lift-off

Of their new research, the MIT and UW Madison researchers took a better have a look at the method and found that the important thing to the fabric’s easy-peel property was lead.

As a part of its chemical construction, the staff, together with colleagues on the Rensselaer Polytechnic Institute, found that the pyroelectric movie accommodates an orderly association of lead atoms which have a big “electron affinity,” that means that lead attracts electrons and prevents the cost carriers from touring and connecting to a different supplies similar to an underlying substrate. The lead acts as tiny nonstick items, permitting the fabric as an entire to peel away, completely intact.

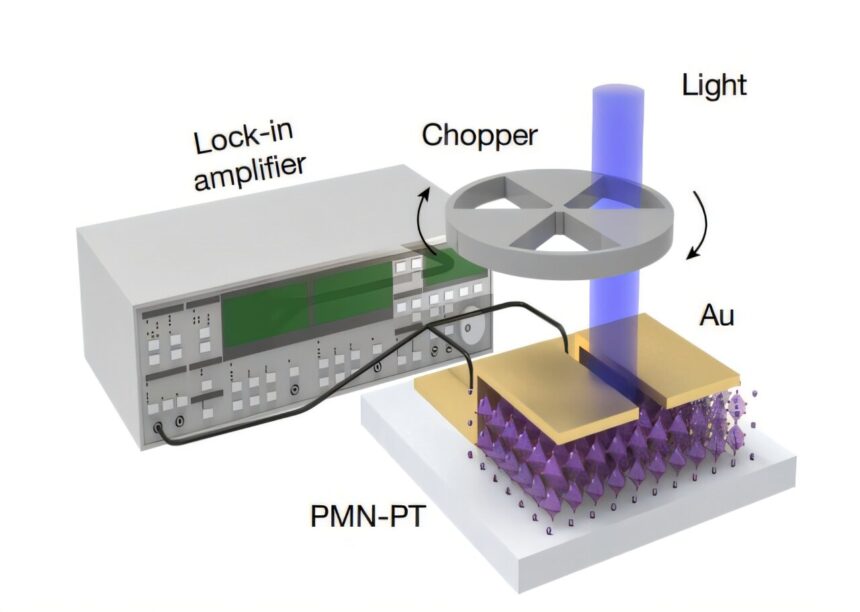

The staff ran with the conclusion and fabricated a number of ultrathin movies of PMN-PT, every about 10 nanometers skinny. They peeled off pyroelectric movies and transferred them onto a small chip to type an array of 100 ultrathin heat-sensing pixels, every about 60 sq. microns (about .006 sq. centimeters). They uncovered the movies to ever-slighter modifications in temperature and located the pixels had been extremely delicate to small modifications throughout the far-infrared spectrum.

The sensitivity of the pyroelectric array is akin to that of state-of-the-art night-vision units. These units are presently primarily based on photodetector supplies, through which a change in temperature induces the fabric’s electrons to leap in vitality and briefly cross an vitality “band hole,” earlier than settling again into their floor state.

This electron leap serves as {an electrical} sign of the temperature change. Nevertheless, this sign might be affected by noise within the atmosphere, and to forestall such results, photodetectors need to additionally embody cooling units that convey the devices all the way down to liquid nitrogen temperatures.

Present night-vision goggles and scopes are heavy and hulking. With the group’s new pyroelectric-based method, NVDs might have the identical sensitivity with out the cooling weight.

The researchers additionally discovered that the movies had been delicate past the vary of present night-vision units and will reply to wavelengths throughout the complete infrared spectrum.

This implies that the movies may very well be integrated into small, light-weight, and moveable units for varied purposes that require completely different infrared areas. For example, when built-in into autonomous automobile platforms, the movies might allow automobiles to “see” pedestrians and automobiles in full darkness or in foggy and wet circumstances.

The movie may be utilized in fuel sensors for real-time and on-site environmental monitoring, serving to detect pollution. In electronics, they may monitor warmth modifications in semiconductor chips to catch early indicators of malfunctioning components.

The staff says the brand new lift-off methodology might be generalized to supplies that will not themselves include lead. In these circumstances, the researchers suspect that they’ll infuse Teflon-like lead atoms into the underlying substrate to induce the same peel-off impact. For now, the staff is actively working towards incorporating the pyroelectric movies right into a practical night-vision system.

“We envision that our ultrathin movies may very well be made into high-performance night-vision goggles, contemplating its broad-spectrum infrared sensitivity at room-temperature, which permits for a light-weight design with out a cooling system,” Zhang says.

“To show this right into a night-vision system, a practical gadget array must be built-in with readout circuitry. Moreover, testing in diversified environmental circumstances is important for sensible purposes.”
