Giant X-ray facility shows that magnets can reduce flaws in 3D printed components

Security important parts for plane and Method 1 racing vehicles may someday be 3D printed through a brand new approach, developed by researchers at UCL and the College of Greenwich, that considerably reduces imperfections within the manufacturing course of.

The approach was developed after the staff used superior X-ray imaging to watch the causes of imperfections that shaped in complicated 3D printed steel alloy parts. If this system turns into extensively deployed, it may make a spread of those parts, from synthetic hip joints to plane elements, stronger and extra sturdy.

The research, published in Science, observes the forces at play in the course of the laser-based 3D printing of steel alloys in unprecedented element and in actual time.

To do that, the staff carried out high-speed synchrotron X-ray imaging of the manufacturing course of on the Superior Photon Supply (APS) synchrotron in Chicago, to file the complicated interplay between the laser beam and the steel uncooked materials over timescales of a lot lower than a thousandth of a second.

This allowed them to see the creation of small keyhole-shaped pores within the part because of the vapor generated when the laser melted the steel alloys, and the reason for instabilities within the keyhole that results in defects in 3D printed elements.

The staff then noticed the manufacturing course of with a magnetic subject utilized to the steel alloys because the half is shaped, which they hypothesized would possibly assist to stabilize the purpose at which the laser hits the molten steel, decreasing imperfections.

This principle proved appropriate, with an 80% discount in pore formation in parts printed whereas an acceptable magnetic subject was utilized.

Dr. Xianqiang Fan, first writer of the research from UCL Mechanical Engineering, stated, “When the laser heats up the steel it turns into liquid, but additionally produces vapor. This vapor types a plume that pushes the molten steel aside, forming a J-shaped melancholy. Floor stress causes ripples within the melancholy and the underside of it breaks off, leading to pores within the completed part.

“Once we apply a magnetic subject to this course of, thermoelectric forces trigger a fluid movement that helps to stabilize the opening in order that it resembles an ‘I’ form, with no tail to interrupt off when it ripples.”

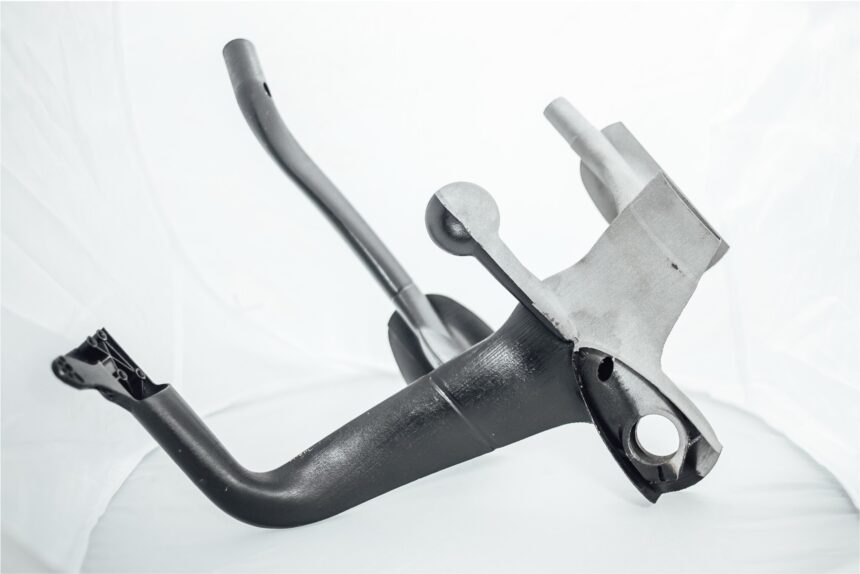

In laser-based 3D printing of steel alloys, a computer-controlled laser melts layers of steel powder to type complicated stable shapes. This permits the manufacturing of alloy parts with unparalleled complexity to be used in high-value merchandise in a variety of sectors, from titanium bicycle elements to biomedical prosthetics.

To acquire thick layers at quick speeds, the laser is very centered to concerning the thickness of a human hair, making a molten pool with a keyhole formed vapor melancholy close to the entrance. Nevertheless, this keyhole will be unstable and create bubbles that develop into pores within the last part, impacting mechanical sturdiness.

Professor Peter Lee, senior writer of the research from UCL Mechanical Engineering, stated, “Although keyhole pores in these kinds of parts have been identified about for many years, methods to stop their formation have remained largely unknown. One factor that has been proven to often assistance is making use of a magnetic subject, however the outcomes haven’t been repeatable and the mechanism by which it really works is disputed.

“On this research we have been in a position to watch the manufacturing course of in unprecedented element by capturing pictures over 100,000 instances a second, each with and with out magnets, to point out that thermoelectric forces can be utilized to cut back keyhole porosity considerably.

“In actual phrases, which means we now have the information we have to create higher-quality 3D printed parts that can final for much longer and broaden use into new security important purposes, from aerospace to Method 1.”

Earlier than the insights from this research will be utilized, producers might want to overcome a number of technical challenges to include magnetic fields into their manufacturing strains. The authors say this translation is prone to take a number of years, however that the affect of doing so shall be important.

Professor Andrew Kao, a senior writer of the research from the College of Greenwich, stated, “Our analysis sheds mild on the bodily forces concerned in this kind of manufacturing, the place there are intricate dynamics between floor stress and viscous forces.

“Making use of the magnetic subject disrupts this and additional introduces electromagnetic damping and thermoelectric forces and, on this work, the latter acts to beneficially stabilize the method.

“With this new highly effective software, we will management the soften movement with out the necessity of modifying feedstock supplies or laser beam form. We’re very excited to see how we will apply this software to develop distinctive microstructures tailor-made for a spread of end-use purposes.

“Whether or not it’s fabricating synthetic hips or battery packs for electrical autos, enhancements in additive manufacturing will make it faster and cheaper to provide 3D printed parts which are additionally of upper high quality.”
