Fiber optic networks enhanced with liquid crystal technology

Functions similar to self-driving automobiles, 6G cell communications and quantum communications are pushing fiber optic networks to their limits. Fraunhofer researchers have joined forces with companions to plot intelligent methods to optimize information transmission. Optical switches with liquid crystal on silicon (LCoS) mirrors shrink information packets right down to measurement so the community can carry extra information, whereas indicators are distributed throughout totally different fiber strands to create extra flexibility.

Fiber optic cables transport indicators at close to mild velocity and may transmit even giant volumes of knowledge at blazing speeds. Even so, typical fiber optic methods are now not highly effective sufficient to accommodate the applied sciences of the long run. In two initiatives, WESORAM and Multi-Cap, the Fraunhofer Institute for Utilized Optics and Precision Engineering IOF in Jena teamed up with companions to get fiber optic networks prepared for the world of tomorrow.

Fiber optic networks already use applied sciences similar to wavelength-division multiplexing. On this methodology, mild is used as a service for a stream of knowledge, with an optical change splitting the sunshine into a number of frequencies. A spectrometer grating divides the sign into totally different wavelengths after which transmits them to an LCoS mirror. This forwards the indicators to the output fibers, which makes it potential for every fiber to move a number of streams of knowledge. Nonetheless, this methodology can solely be used over a restricted frequency vary.

Cross-wiring of indicators

Within the WESORAM challenge, quick for Wellenlängenselektive Schalter für optisches Raummultiplex (Wavelength-Selective Switches for Optical House-Division Multiplexing), Dr. Steffen Trautmann and his staff at Fraunhofer IOF labored with challenge companions to refine this know-how.

First the staff added flexibility to the switching mechanism within the LCoS change so it could be capable of redirect the info stream to any fiber. As soon as the spectrometer grating has break up the incoming mild sign into frequencies, the LCoS mirror sends every frequency to a distinct fiber. This expands typical wavelength-division multiplexing right into a space-division multiplexing method. To complement the precept of “a number of frequencies on one fiber,” this implies the precept of “one frequency, a number of fibers” may also be utilized.

“In our challenge, we succeeded in sending indicators from eight enter channels to 16 output channels at will. This type of cross-wiring will increase community capability since there may be far more flexibility to the transmission and forwarding of knowledge streams. That is particularly helpful when information is being despatched over longer distances similar to between cities,” says Trautmann, the challenge supervisor and an professional on optical methods.

One other benefit is that fewer optical switches are wanted for the fiber optic community total. This lowers the prices of each set up and ongoing operation.

Smaller information packets, increased throughput

As their subsequent step, the researchers from Jena succeeded in growing the decision of the optical module with a newly developed grating. “Proper now, spectral decision of 100 GHz, or about 0.8 nm, is the state-of-the-art. The mirror we developed can obtain as much as 25 GHz, or roughly 0.2 nm,” Trautmann explains.

The upper decision means the sunshine frequency for the info stream is narrower in band by an element of 4, so the info packets are proportionally smaller. And that in flip means the sunshine conductors can transmit many extra information packets concurrently.

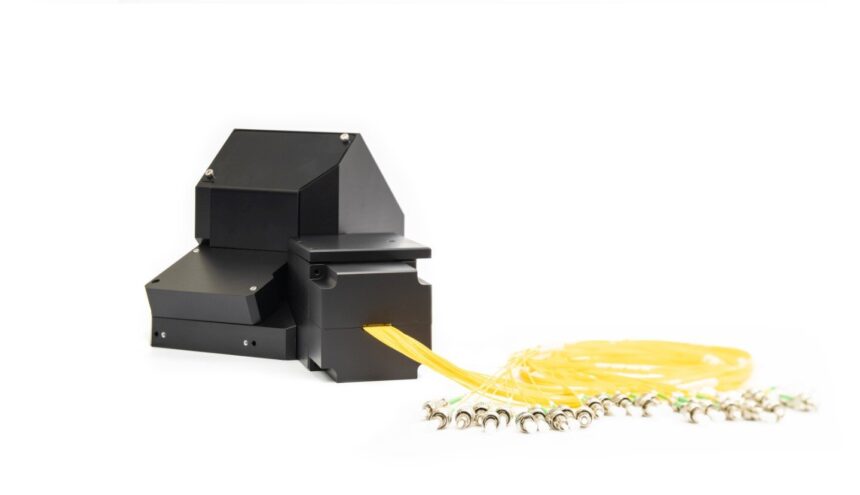

The challenge companions had been Adtran, an organization in Meiningen (Thuringia) that focuses on networks, and Berlin-based Holoeye, which focuses on optical methods and constructed the LCoS mirror. The specialists from Fraunhofer IOF had been chargeable for the optical design. Additionally they used ultra-precision know-how to develop a beam splitter for the spectrometer grating and built-in the entire elements right into a single tiny half.

Multi-Cap amplifier serves multi-core fibers

WESORAM dovetails neatly with one other challenge, Multi-Cap. On this challenge, researchers are working to extend the variety of channels for parallel information transmission. Conventional fibers include one information channel and one sign core, whereas multi-core fibers use a number of cores to transmit information. Though these cables include many extra conductors, they’re barely thicker in any respect.

The staff at Fraunhofer IOF developed the sign amplifiers wanted for multi-core fibers. They will serve as much as 12 channels on the identical time, attaining greater than 20 dB of amplification per channel. This know-how is considerably extra energy-efficient, as just one amplifier module is required for 12 channels.
