Engineers develop a fully 3D-printed electrospray engine that can power tiny satellites

An electrospray engine applies an electrical discipline to a conductive liquid, producing a high-speed jet of tiny droplets that may propel a spacecraft. These miniature engines are perfect for small satellites known as CubeSats which might be typically utilized in tutorial analysis.

Since electrospray engines make the most of propellant extra effectively than the highly effective, chemical rockets used on the launchpad, they’re higher fitted to exact, in-orbit maneuvers. The thrust generated by an electrospray emitter is tiny, so electrospray engines usually use an array of emitters which might be uniformly operated in parallel.

Nonetheless, these multiplexed electrospray thrusters are usually made by way of costly and time-consuming semiconductor cleanroom fabrication, which limits who can manufacture them and the way the units could be utilized.

To assist break down boundaries to area analysis, MIT engineers have demonstrated the primary totally 3D-printed, droplet-emitting electrospray engine. Their gadget, which could be produced quickly and for a fraction of the price of conventional thrusters, makes use of commercially accessible 3D printing supplies and strategies. The units might even be totally made in orbit, as 3D printing is suitable with in-space manufacturing.

By creating a modular course of that mixes two 3D printing strategies, the researchers overcame the challenges concerned in fabricating a posh gadget comprised of macroscale and microscale parts that should work collectively seamlessly.

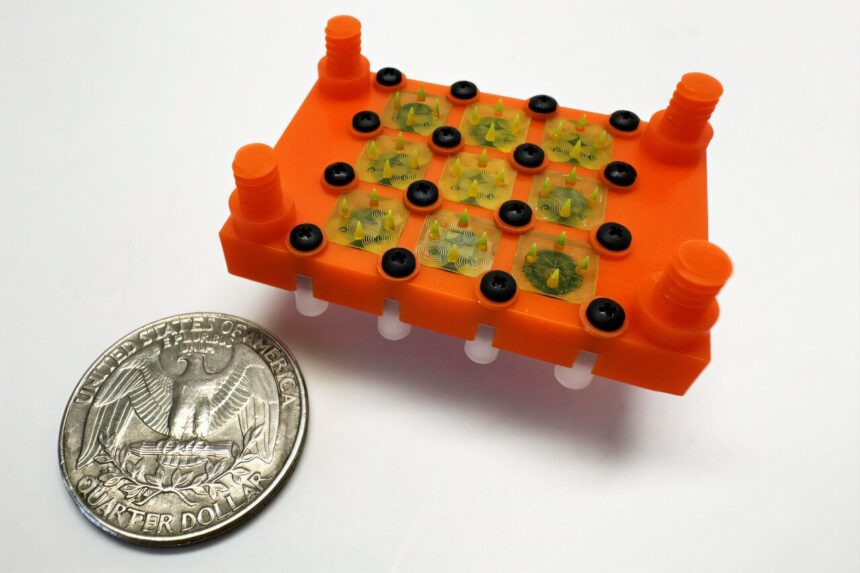

Their proof-of-concept thruster contains 32 electrospray emitters that function collectively, producing a steady and uniform movement of propellant. The 3D-printed gadget generated as a lot or extra thrust than current droplet-emitting electrospray engines. With this expertise, astronauts would possibly rapidly print an engine for a satellite tv for pc without having to attend for one to be despatched up from Earth.

“Utilizing semiconductor manufacturing does not match up with the concept of low-cost entry to area. We need to democratize area {hardware}. On this work, we’re proposing a approach to make high-performance {hardware} with manufacturing strategies which might be out there to extra gamers,” says Luis Fernando Velásquez-García, senior writer of a paper describing the thrusters, which is published in Superior Science.

Velásquez-García is a principal analysis scientist in MIT’s Microsystems Expertise Laboratories (MTL) and he’s joined on the paper by lead writer Hyeonseok Kim, an MIT graduate scholar in mechanical engineering.

A modular method

An electrospray engine has a reservoir of propellant that flows by way of microfluidic channels to a sequence of emitters. An electrostatic discipline is utilized on the tip of every emitter, triggering an electrohydrodynamic impact that shapes the free floor of the liquid right into a cone-shaped meniscus that ejects a stream of high-speed charged droplets from its apex, producing thrust.

The emitter ideas should be as sharp as potential to achieve the electrohydrodynamic ejection of propellant at a low voltage. The gadget additionally requires a posh hydraulic system to retailer and regulate the movement of liquid, effectively shuttling propellant by way of microfluidic channels.

The emitter array consists of eight emitter modules. Every emitter module accommodates an array of 4 particular person emitters that should work in unison, forming a bigger system of interconnected modules.

“Utilizing a one-size-fits-all fabrication method does not work as a result of these subsystems are at completely different scales. Our key perception was to mix additive manufacturing strategies to attain the specified outcomes, then provide you with a approach to interface the whole lot so the components work collectively as effectively as potential,” Velásquez-García says.

To perform this, the researchers utilized two various kinds of vat picture polymerization printing (VPP). VPP includes shining gentle onto a photosensitive resin, which solidifies to kind 3D buildings with easy, high-resolution options.

The researchers fabricated the emitter modules utilizing a VPP methodology known as two-photon printing. This system makes use of a extremely centered laser beam to solidify resin in a exactly outlined space, constructing a 3D construction one tiny brick, or voxel, at a time. This stage of element enabled them to supply extraordinarily sharp emitter ideas and slender, uniform capillaries to hold propellant.

The emitter modules are fitted into an oblong casing known as a manifold block, which holds every in place and provides the emitters with propellant. The manifold block additionally integrates the emitter modules with the extractor electrode that triggers propellant ejection from the emitter ideas when an acceptable voltage is utilized. Fabricating the bigger manifold block utilizing two-photon printing can be infeasible due to the tactic’s low throughput and restricted printing quantity.

As a substitute, the researchers used a way known as digital gentle processing, which makes use of a chip-sized projector to shine gentle into the resin, solidifying one layer of the 3D construction at a time.

“Every expertise works very nicely at a sure scale. Combining them, in order that they work collectively to supply one gadget, lets us take the perfect of every methodology,” Velásquez-García says.

Propelling efficiency

However 3D printing the electrospray engine parts is just half the battle. The researchers additionally performed chemical experiments to make sure the printing supplies have been suitable with the conductive liquid propellant. If not, the propellant would possibly corrode the engine or trigger it to crack, which is undesirable for {hardware} meant for long-term operation with little to no upkeep.

In addition they developed a technique to clamp the separate components collectively in a manner that avoids misalignments which might hamper efficiency and ensures the gadget stays watertight.

Ultimately, their 3D-printed prototype was capable of generate thrust extra effectively than bigger, dearer chemical rockets and outperformed current droplet electrospray engines.

The researchers additionally investigated how adjusting the stress of propellant and modulating the voltage utilized to the engine affected the movement of droplets. Surprisingly, they achieved a wider vary of thrust by modulating the voltage. This might get rid of the necessity for a posh community of pipes, valves, or stress alerts to control the movement of liquid, resulting in a lighter, cheaper electrospray thruster that can be extra environment friendly.

“We have been capable of present {that a} easier thruster can obtain higher outcomes,” Velásquez-García says.

The researchers need to proceed exploring the advantages of voltage modulation in future work. In addition they need to fabricate denser and bigger arrays of emitter modules. As well as, they could discover using a number of electrodes to decouple the method of triggering of the electrohydrodynamic ejection of propellant from establishing the form and pace of the emitted jet. In the long term, additionally they hope to reveal a CubeSat that makes use of a completely 3D-printed electrospray engine throughout its operation and deorbiting.
