Electronic fiber with liquid metal droplets enables stretchable sensing

EPFL researchers have engineered a fiber-based digital sensor that continues to be useful even when stretched to over 10 instances its authentic size. The system holds promise for good textiles, bodily rehabilitation gadgets, and smooth robotics.

The phrase “liquid metallic” could call to mind one thing hazardous, like mercury or molten metal. However within the Laboratory of Photonic Supplies and Fiber Units (FIMAP) in EPFL’s Faculty of Engineering, it merely means a combination of indium and gallium that’s unhazardous, stays liquid at room temperature, and reveals nice promise for creating digital fibers for wearables and robotic sensors.

Sadly, as FIMAP head Fabien Sorin explains, liquid metals are extraordinarily tough to course of, and it is particularly exhausting to supply digital fibers that mix excessive and steady conductivity with stretchability. Now, the lab has overcome this problem utilizing a method known as thermal drawing, which is historically used to engineer fiber optics.

“We now have built-in thermal drawing right into a tremendously simplified course of for producing fiber sensors with finely tailor-made digital properties, making them promising candidates for good textiles for sport and well being monitoring purposes,” Sorin says.

The workforce used their method, revealed in Nature Electronics, to construct a sensible knee brace that may monitor a person’s actions and joint operate throughout exercise.

Easy, delicate, stretchable

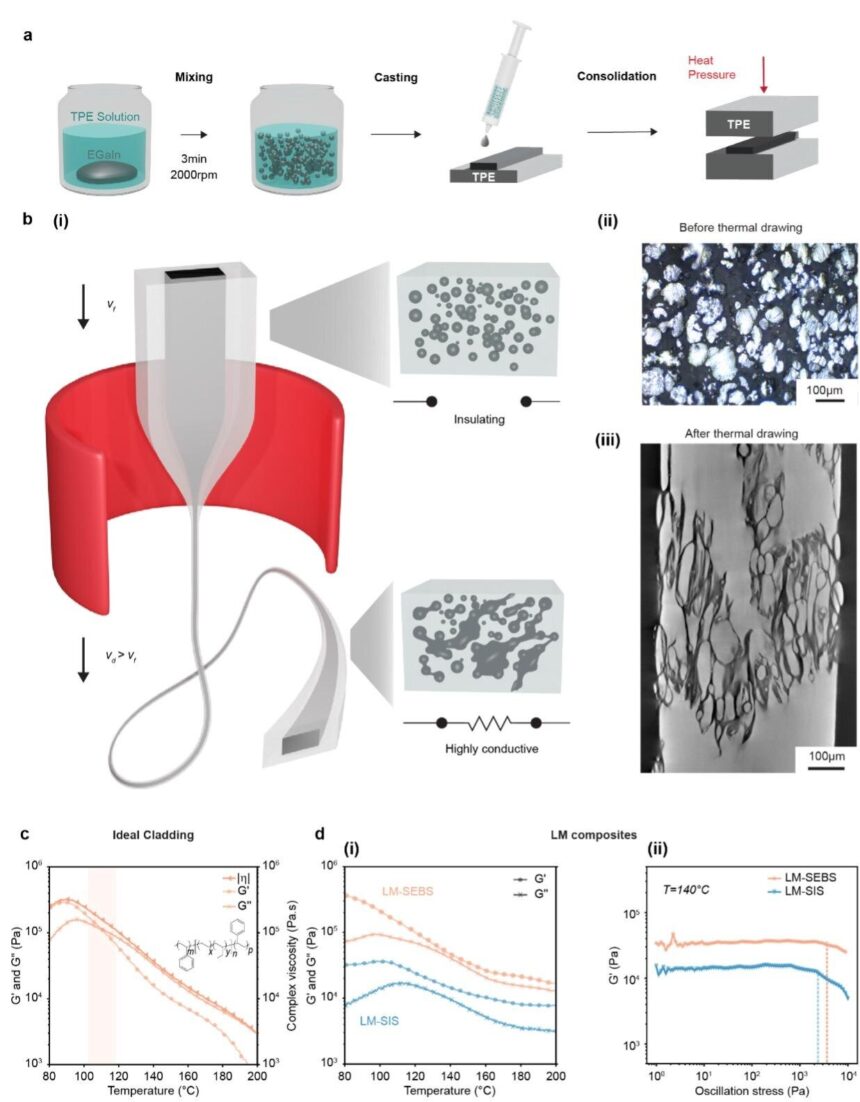

The thermal drawing course of begins with making a macroscopic model of the digital fiber known as a preform, which comprises liquid metallic parts fastidiously organized in a 3D sample. The preform is then heated and stretched out, like melted plastic, to make fibers of some hundred microns to millimeters in diameter that retain the identical 3D sample.

Ph.D. scholar and first writer Stella Laperrousaz explains that this sample is likely one of the keys to the workforce’s innovation, as a result of it permits them to regulate which areas of a person fiber are lively (electrically conductive) or inactive (insulating).

“When the liquid metallic is combined with a smooth elastomer matrix, it varieties many small droplets. The method of heating and stretching the preform breaks these droplets and prompts the liquid metallic. Which means we will finely tune the performance of a single fiber by controlling which areas turn out to be lively by way of the shear stress attributable to the preform stretching course of.”

Experiments confirmed that the workforce’s fibers remained extremely delicate even when stretched to over 10 instances their authentic size, giving the method a major benefit over different strategies that wrestle to stability electrical efficiency with stretchability and ease of processing.

A sensible knee brace

As a proof-of-concept, the researchers seamlessly built-in their digital fibers right into a smooth knee brace after which recorded the system’s efficiency whereas a topic walked, ran, squatted, and jumped. The brace reliably monitored the bending angle of the wearer’s knee and was even capable of precisely reconstruct their gait throughout operating.

“Due to its ease of integration, our fiber might simply be used to watch movement and detect anomalies in different joints, such because the ankles, shoulder or wrist,” Sorin says, including that the method can be probably extremely scalable.

“Typical digital gadgets may be too fragile or too inflexible to be built-in into textiles, however our fiber could possibly be built-in into meters—and even kilometers—of cloth with enough scale-up, which is what we’re engaged on subsequent. Such material might then be used to supply wearables, smooth prostheses, or sensors for robotic limbs.”
