‘Chinese lantern’ structure shifts into more than a dozen shapes for various applications

Researchers have created a polymer “Chinese language lantern” that may snap into greater than a dozen curved, three-dimensional shapes by compressing or twisting the unique construction. This fast shape-shifting habits could be managed remotely utilizing a magnetic discipline, permitting the construction for use for a wide range of functions.

The corresponding analysis paper, “Reprogrammable snapping morphogenesis in freestanding ribbon-cluster meta-units through saved elastic vitality,” is printed in Nature Supplies.

The paper was co-authored by Caizhi Zhou and Haitao Qing, each Ph.D. college students at NC State; and by Yinding Chi, a former Ph.D. scholar at NC State who’s now a postdoctoral researcher at Penn.

The fundamental lantern object is made by chopping a polymer sheet right into a diamond-like parallelogram form, then chopping a row of parallel traces throughout the middle of every sheet. This creates a row of an identical ribbons linked by a stable strip of fabric on the high and backside of the sheet. By connecting the left and proper ends of the stable strips at high and backside, the polymer sheet varieties a three-dimensional form resembling a roughly spherical Chinese language lantern.

“This primary form is, by itself, bistable,” says Jie Yin, corresponding writer of a paper on the work and a professor of mechanical and aerospace engineering at North Carolina State College. “In different phrases, it has two secure varieties. It’s secure in its lantern form, in fact. However for those who compress the construction, pushing down from the highest, it can slowly start to deform till it reaches a essential level, at which level it snaps right into a second secure form that resembles a spinning high.

“Within the spinning-top form, the construction has saved the entire vitality you used to compress it. So, as soon as you start to tug up on the construction, you’ll attain a degree the place all of that vitality is launched without delay, inflicting it to snap again into the lantern form in a short time.”

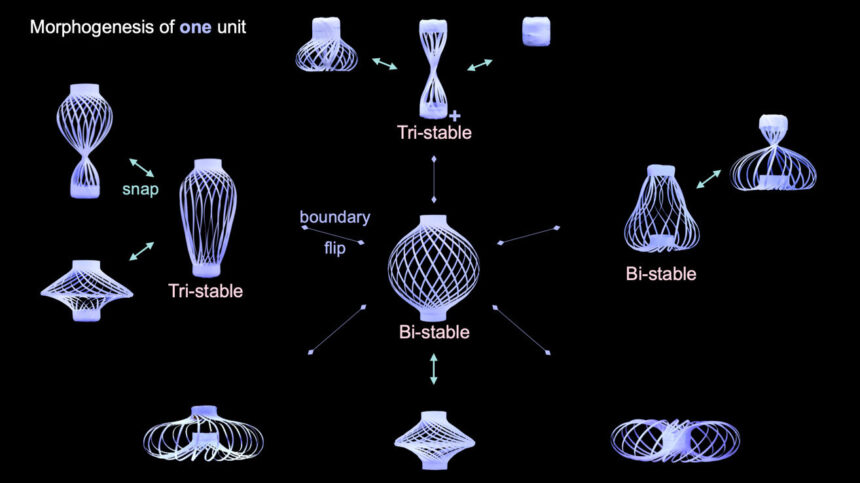

“We discovered that we might create many extra shapes by making use of a twist to the form, by folding the stable strips on the high or backside of the lantern in or out, or any mixture of these issues,” says Yaoye Hong, first writer of the paper and a former Ph.D. scholar at NC State who’s now a postdoctoral researcher on the College of Pennsylvania.

“Every of those variations can be multistable. Some can snap backwards and forwards between two secure states. One has 4 secure states, relying on whether or not you are compressing the construction, twisting the construction, or compressing and twisting the construction concurrently.”

By attaching a skinny magnetic movie to the stable strip on the backside of the construction, the researchers had been in a position to compress or twist the buildings remotely, utilizing a magnetic discipline. They then demonstrated a number of functions that made use of snapping between two secure shapes. These functions included a noninvasive gripper for greedy fish; a filter that opened and closed to regulate the stream of water; and a compact form that quickly expanded right into a tall form to open a collapsed tube.

The researchers additionally developed a mathematical mannequin that captures the best way wherein completely different angles within the construction management each the form of every variation and the quantity of vitality that’s saved in every secure state.

“This mannequin permits us to program the form we wish to create, how secure it’s, and the way highly effective it may be when saved potential vitality is allowed to snap into kinetic vitality,” says Hong. “And all of these issues are essential for creating shapes that may carry out desired functions.”

“Transferring ahead, these lantern items could be assembled into 2D and 3D architectures for broad functions in shape-morphing mechanical metamaterials and robotics,” says Yin. “We shall be exploring that.”
