Bubble wrap bursts enable power-free acoustic testing

Non-destructive testing permits engineers to judge the integrity of constructions reminiscent of pipelines, tanks, bridges, and equipment with out dismantling them. Standard approaches depend on loudspeakers, lasers, or electrical sparks. Whereas efficient, these techniques will be tough or harmful to make use of in flammable or confined areas and require appreciable energy to operate successfully.

Now, a brand new research from Japan, obtainable on-line in Measurement, reveals how a typical packaging materials can exchange power-hungry gadgets in non-destructive testing. The crew, led by Professor Naoki Hosoya, together with Shuichi Yahagi from Tokyo Metropolis College, Toshiki Shimizu and Seiya Inadera from the Shibaura Institute of Know-how, and Itsuro Kajiwara of Hokkaido College, discovered a easy approach to check pipes for hidden flaws through the use of bubble wrap.

The researchers found that the sharp crack of a bubble burst could be a viable substitute for the costly, energy-dependent instruments normally employed in non-destructive testing. The researchers declare the tactic can detect objects inside a pipe inside a 2% error margin, with out requiring electrical energy or heavy tools.

“The crew and I sought a less complicated resolution: a sound supply that’s small, cheap, and protected to function in virtually any setting,” Professor Hosoya mentioned. “Bubble wrap is a small, cheap, and mass-produced product that doesn’t require an influence provide, so it’s helpful within the subject, reminiscent of below building.”

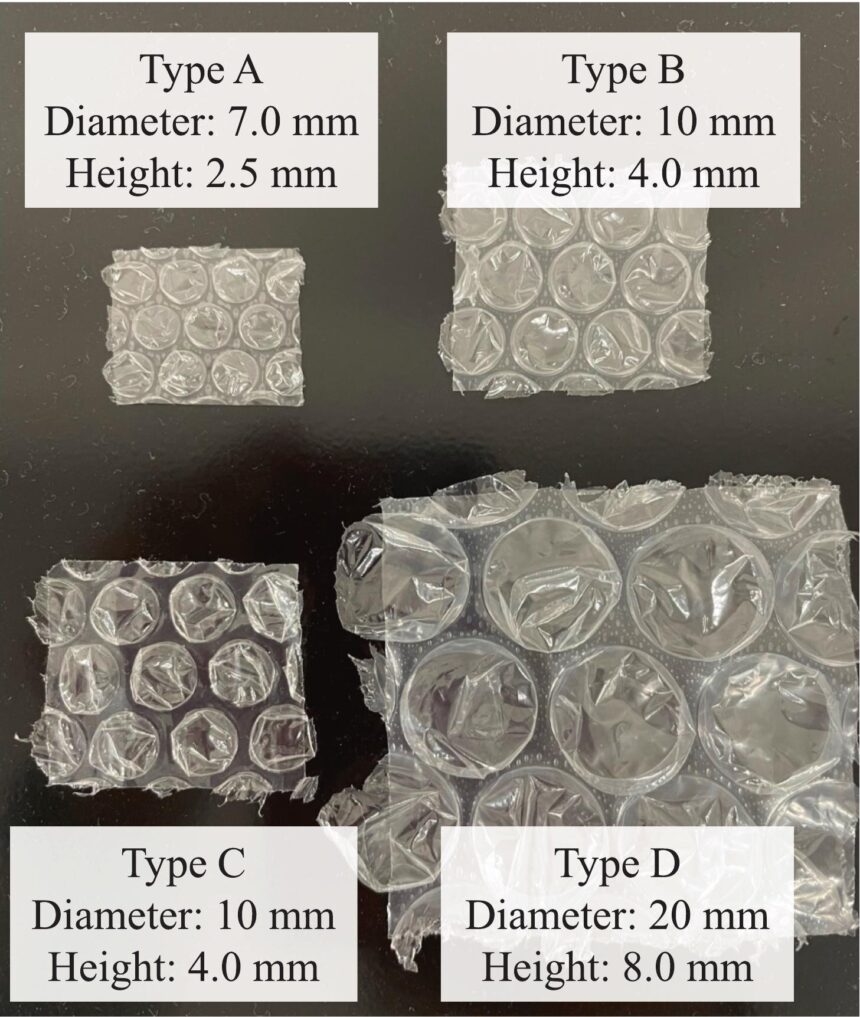

The researchers examined a number of forms of bubble wrap and measured their acoustic traits, together with peak sound strain, pulse width, and frequency vary. To their shock, the bursts produced frequencies of as much as 40 kilohertz, ample for exact acoustic testing. The crew then constructed a system utilizing bubble wrap because the sound supply, a microphone for sign assortment, and a pc operating wavelet-based sound evaluation to trace how sound waves mirrored inside a pipe.

In contrast with conventional impulse sources reminiscent of loudspeakers, firecrackers, or laser-induced plasma, the bubble-wrap system eliminates complicated wiring and potential hazards. It may also be safely utilized in flammable environments the place electrical gadgets would possibly pose a danger. By analyzing how the echoes modified when a international object was current, the researchers have been in a position to determine the item’s place with a excessive diploma of accuracy.

Bubble wrap, lengthy thought-about a disposable packaging materials, gained a brand new scientific function on this research. By adjusting bubble measurement and movie thickness, the crew may alter the power and path of the generated sound, turning a typical materials right into a controllable instrument for acoustic testing. The system proved each correct and transportable.

With solely a sheet of bubble wrap and a microphone, the crew may determine small variations in mirrored sound that exposed the place of inner obstructions. The accuracy of those measurements was similar to outcomes obtained utilizing much more complicated gadgets.

The approach’s flexibility additionally permits it to be tailored to totally different conditions. Altering bubble measurement or inner strain shifts the sound frequency, enabling the tactic to be utilized to numerous pipe diameters and supplies. The simplicity of the setup implies that one operator can carry out inspections with minimal coaching.

“This technique could also be utilized in NDT to detect international objects in pipework on-site, reminiscent of within the building of buildings, as a result of these sound sources have ample acoustic efficiency, reminiscent of an virtually impulsive, omnidirectional radiation sample, repeatability, cost-efficiency, portability, and no energy provide in sensible use, in comparison with standard acoustic excitation gadgets,” defined Prof Hosoya.

What started as a second of curiosity, an remark made whereas casually popping bubble wrap, grew to become a sensible acoustic measurement instrument. The research demonstrates how acquainted supplies can yield exact scientific purposes when examined systematically.

As an alternative of counting on massive or specialised devices, the researchers used a burst of compressed air from the plastic to carry out the identical operate. The group plans to additional check the system below various temperature and strain circumstances and to discover methods to develop a compact, handheld model appropriate for subject inspections. Continued refinement might enhance sensitivity, permitting the detection of deeper or extra complicated constructions.

This analysis illustrates that significant innovation doesn’t all the time depend upon complicated supplies or massive budgets. Generally, it emerges from peculiar experiences. On this case, a sheet of bubble wrap, easy, cheap, and extensively obtainable, has grow to be a brand new instrument for inspecting constructions with out inflicting harm.
