At 20 kW per rack, the airflow velocity required to keep up secure working temperatures triggers two failure modes. First, the acoustic vibration turns into extreme sufficient to break tools. Organizations be taught this lesson the onerous approach — high-frequency vibration from upgraded CRAC items inflicting bit errors in high-density Non-Risky Reminiscence Categorical (NVMe) storage arrays. The signature is mechanical resonance in drive enclosures. Followers shake storage infrastructure to dying.
Second, the ability required for that airflow turns into self-defeating. At 100 kW densities, practically 30 % of the whole facility energy goes to followers alone — earlier than accounting for compressors and chillers working additional time to chill the air. In accordance with Uptime Institute research, knowledge facilities spend an estimated $1.9 to $2.8 million per MW yearly on operations, with cooling-related prices consuming practically $500,000 of that determine. The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) TC 9.9 guidelines governing knowledge middle thermal administration have been written for a 15 kW world. Many organizations now function to date exterior these parameters that the rules have change into irrelevant.
One second crystallized this actuality. A single CRAC unit failed in a coaching cluster. Inside eight minutes, hot-aisle temperatures exceeded 120°F. Monitoring programs triggered computerized throttling on thousands and thousands of {dollars} of compute infrastructure. A multi-day processing run crashed and restarted from a checkpoint. Standing in that sweltering aisle watching temperature readouts climb, the conclusion was inescapable: air had carried the trade so far as it might go.
Crossing the Rubicon: Chilly plates versus rear-door warmth exchangers
Bringing liquid into a knowledge middle is terrifying. Water — or water-adjacent fluids — enters rooms stuffed with tools price tens of thousands and thousands of {dollars}. Tools that fails catastrophically when moist. “Crossing the Rubicon” captures the dedication: as soon as began down this path, there isn’t a returning to the snug certainty of air cooling.
The 2 major architectures organizations consider are direct-to-chip (DTC) chilly plates and rear-door warmth exchangers (RDHx). Understanding each issues as a result of probably the most profitable implementations deploy a hybrid method.

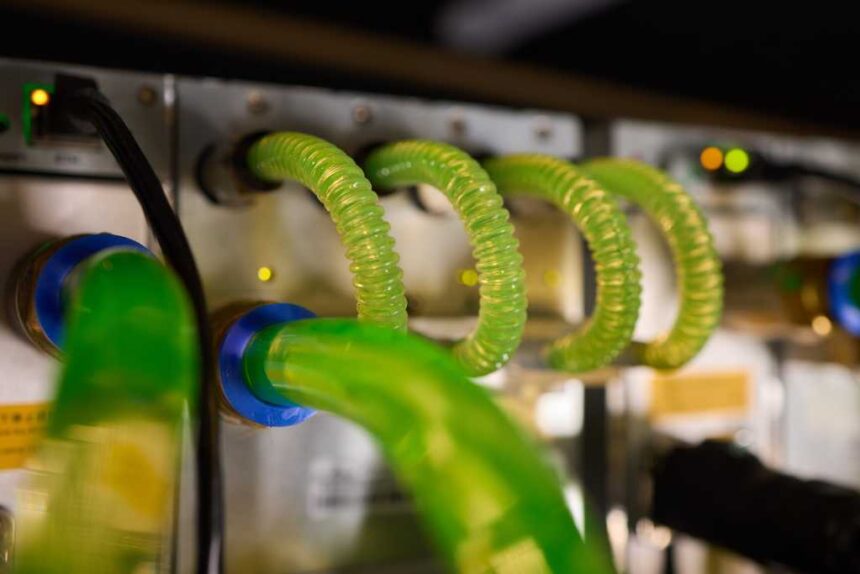

Chilly plate programs pump coolant immediately via steel plates, making bodily contact with processors. The engineering magnificence is outstanding. As a substitute of transferring warmth via air to a distant cooling system, warmth conducts immediately into liquid flowing inches from silicon. The best implementations use a secondary fluid distribution loop with a coolant distribution unit (CDU) at every row. The CDU receives chilled water from the central plant and makes use of warmth exchangers to chill the secondary loop that touches servers. This structure can deal with the 1,000-watt-plus thermal design energy (TDP) — the utmost warmth a processor generates underneath load — of particular person Blackwell GPUs. These are thermal hundreds that might require hurricane-force airflow to dissipate via convection alone.
