Architected design creates efficient structures

When 3D printing was first launched in 1985, it marked a significant turning level for the manufacturing business. Along with being cheaper than conventional manufacturing applied sciences, it additionally promised the power to customise designs and make prototypes on demand. Whereas its know-how continues to be thought of comparatively new, there was an accelerating demand for 3D printing strategies throughout sectors up to now decade, starting from aerospace and protection to drugs.

But, Affiliate Professor Pablo Valdivia y Alvarado from the Singapore College of Expertise and Design (SUTD) believes that there are nonetheless methods to go earlier than 3D printing can obtain its full potential. In conventional 3D printing, a nozzle is used to print the fabric layer by layer, and the trail that the nozzle takes is named the toolpath.

Nonetheless, layer-by-layer printing is incompatible to be used with supplies like silicone, epoxies, and urethanes which can be slow-curing and take extra time to harden. A lot of these supplies are sometimes used to create comfortable mechanical metamaterials which, in flip, are used for light-weight, nature-inspired buildings, corresponding to lattices and internet buildings. Deposition-based processes in 3D printing, corresponding to direct ink writing, would have the ability to work with these supplies to create such buildings, however these endure from non-optimized toolpaths.

“These points result in prolonged print occasions and are additional exacerbated by the dynamic materials behaviors of their uncured state,” defined Assoc Prof Valdivia y Alvarado. It subsequently stays difficult to 3D-print complicated bioinspired buildings.

To deal with this problem, Assoc Prof Valdivia y Alvarado and his staff at SUTD proposed an architected design method, which they’ve printed within the paper “Architected design and fabrication of soft mechanical metamaterials” printed in Superior Clever Techniques.

Wanting particularly at how direct ink writing can be utilized to manufacture light-weight buildings, the staff first designed a way to optimize the toolpaths. By breaking down the item’s 3D design into factors and easy shapes, the staff may then make use of each segmented and steady toolpath designs to enhance the general toolpath. By this, the staff was in a position to generate toolpaths that contained fewer pointless begins and stops.

To check the method, the staff printed a number of kinds of bioinspired buildings utilizing this technique for producing optimized toolpaths. The staff first sought to tune the properties of the printing supplies to additional improve their suitability for direct ink writing. By choosing three commercially accessible silicone supplies, after which including a modifier often known as Thivex, the staff created and characterised 9 distinct materials mixtures that had been extra appropriate for direct ink writing.

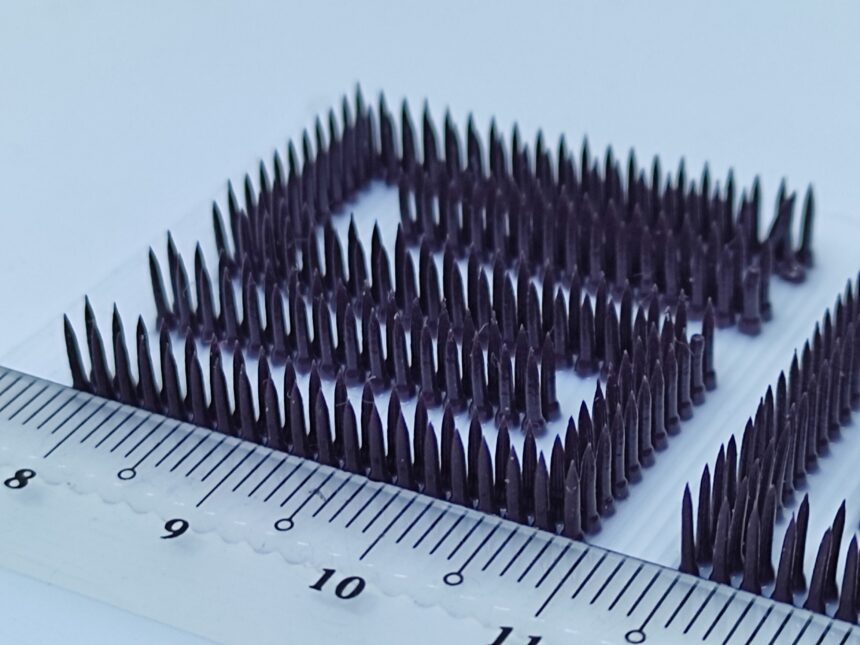

The researchers then proceeded to 3D-print cilia, webs, leaf-like buildings, and lattices utilizing their proposed method, and examined the functionalities of the buildings in several settings. For the 3D-printed cilia, the staff discovered that including it to suction cups improved the suction cups’ pull-off drive; in the meantime, the 3D-printed lattice proved to be an efficient energy-absorbing construction, demonstrating a discount of most affect peak forces by as much as 85 %.

With these findings, the staff is optimistic in regards to the future growth of deposition-based 3D printing strategies for printing bioinspired buildings.

Stated Assoc Prof Valdivia y Alvarado, “Though the method continues to be within the analysis part, its potential for personalized, high-performance designs makes it extremely related for industries centered on robotics, wearable applied sciences, and superior metamaterials.”

He additionally defined that deposition-based additive manufacturing processes may discover a area of interest in superior purposes, complementing conventional strategies that might stay important for producing high-volume and standardized buildings.

For now, the staff is targeted on bettering the scaling effectivity of their technique, decreasing its prices, and increasing the flexibility of the supplies to industrial settings. To do that, the staff plans to discover multi-material printing which might enable totally different supplies to be printed, in flip creating what the staff has coined as “engineered metamaterials.” As well as, the staff can even be investigating how machine studying methods can allow 3D printing customers to specify efficiency metrics for the metamaterial designs that they want to generate.

“These developments will additional unlock the potential of 3D-printed metamaterials for a variety of purposes, together with comfortable robotics and wearable protecting gear,” mused Assoc Prof Valdivia y Alvarado.
