A new generation of innovative manufacturing technology

The Heart for Industrial Photonics (CIP) on the Institute for Manufacturing (IfM) has developed an additive manufacturing approach—laser-assisted chilly spray (LACS).

The method makes use of localized heating of a supersonic powder stream with a laser to deposit metals and cermets to construct, coat or restore components, overcoming the high-temperature and materials limitations of comparable strategies resembling thermal spraying.

The CIP staff has demonstrated the effectiveness of LACS in aerospace functions, the place high-precision and localized materials deposition are essential. This method permits on-demand fabrication of high-quality coatings and element repairs, extending plane lifespan. Moreover, LACS reduces materials waste and vitality consumption in comparison with conventional strategies, supporting the trade’s transition in the direction of net-zero emissions.

Additive manufacturing

Conventional manufacturing strategies usually contain eradicating extra materials from a strong block to realize the specified form utilizing subtractive strategies. In distinction, additive manufacturing builds buildings layer by layer, generally termed 3D printing.

The LACS course of can create components from scratch or add coatings and options to current parts, proving significantly helpful for high-performance coatings, essential element repairs and additive manufacturing within the aerospace, course of, vitality and biomedical industries.

This revolutionary manufacturing methodology presents a number of benefits over conventional strategies, together with the fast manufacturing of customized, advanced components with minimal materials waste. It permits the combination of a number of supplies to realize enhanced properties, permitting parts to be tailor-made to particular functions.

Moreover, it eliminates the necessity for pricey molds or intensive machining, making it significantly helpful for industries requiring low-volume, high-precision components. By adopting this method, producers can obtain higher design flexibility, effectivity and precision in manufacturing.

As of 2023, the UK holds roughly 7.6% of the global additive manufacturing market, with a good smaller share in additive-based coating methods. The worldwide additive manufacturing market is projected to develop considerably, reaching between $70 billion and $88 billion by 2030, relying on numerous market analyses. This anticipated development underscores substantial alternatives for innovation and growth inside this quickly increasing trade.

Laser-assisted chilly spray

The CIP on the Institute for Manufacturing (IfM), underneath the management of Professor Invoice O’Neill and his staff of laser engineers and manufacturing consultants, is pioneering superior additive manufacturing strategies utilizing each chilly spray and powder mattress fusion.

“Chilly spray is a method for quickly fusing powdered metals, cermets (composites of ceramic and metallic) or polymers with out melting them, which might then be used for constructing, coating or repairing components. I first encountered chilly spray whereas working on the College of Liverpool and arrange my first facility devoted to it there,” says O’Neill.

“At first, we focused on utilizing nitrogen as a provider fuel for the powder. When working with high-strength supplies resembling titanium and aluminum alloys—generally utilized in aerospace—we discovered that helium was important for reaching optimum deposition. It is because helium, due to its decrease molecular weight, permits greater particle velocities in chilly spray, enhancing affect vitality and enhancing adhesion to the substrate.”

The requirement for helium posed a big problem due to its price, which is round £80 per minute of operation. Even state-of-the-art recycling efforts recovered solely round 85% of the helium. Moreover, the tools mandatory for recycling vastly restricted the scale of the components that might be manufactured, as they needed to match inside a size-limited chamber designed to seize the surplus helium.

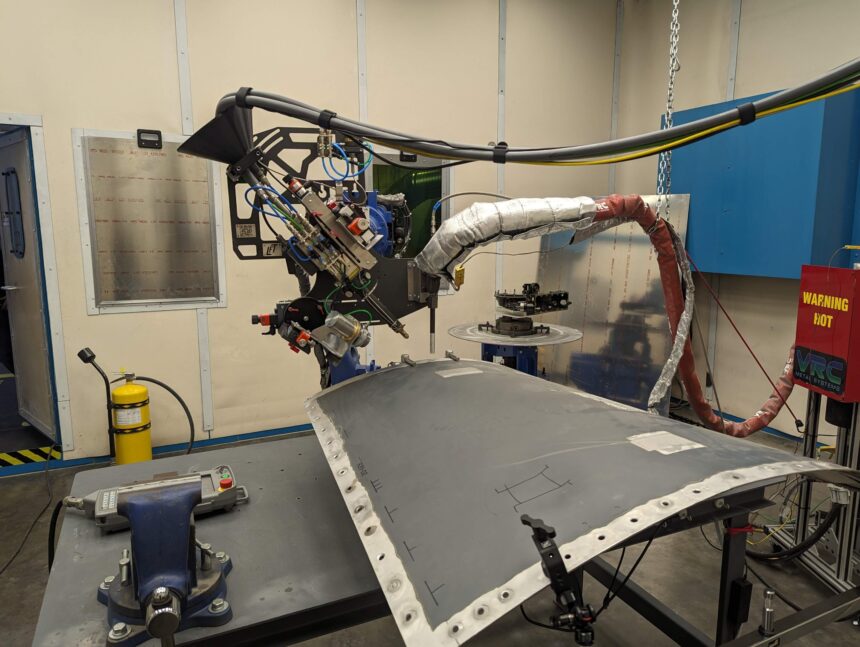

“Think about making an attempt to use a coating to a piece of airplane cladding,” says Dr. Andrew Cockburn, Senior Analysis Affiliate within the CIP lab. “With the ability to do this throughout the constraints of a helium-recycling system is simply unrealistic. We would have liked to discover a extra sensible answer for these high-strength supplies, and that is once we began investigating utilizing lasers.”

To take away the obstacles attributable to helium, the staff invented a course of now often known as “laser-assisted chilly spray (LACS).” LACS facilitates extra environment friendly deposition of solid-state materials powders by including a laser to warmth the deposition website regionally (lowering the substrate yield stress), leading to a stronger bond between the supplies with out the necessity for melting.

Past the discount in price from eradicating helium, LACS has some significant advantages over different chilly spray strategies:

• Enhanced adhesion and deposition effectivity. The localized laser preheating softens the substrate, enhancing particle bonding and deposition effectivity. This ends in stronger coatings than standard chilly spray, and different thermal spray processes, particularly for high-strength supplies like titanium and refractory metals.
• Deposition happens at a decrease particle velocity, that means the powder’s construction is retained within the coating/half. It is a vital benefit for supplies with specialised properties which are simply broken, resembling nano-structured coatings and uncommon earth magnets.
• Improved materials compatibility. LACS permits the deposition of more durable and more difficult supplies that usually have poor adhesion in commonplace chilly spray. This contains cermets, refractory metals and oxidation-resistant alloys.
• Diminished residual stresses and porosity. The laser’s thermal enter reduces residual stresses throughout the coating, resulting in improved mechanical properties. It additionally minimizes porosity, enhancing the structural integrity and sturdiness of the deposited layer.
• Minimal thermal affect on substrate. Not like conventional thermal spray strategies, LACS retains the substrate beneath melting temperature, avoiding section transformations or distortion. This makes it splendid for heat-sensitive supplies and functions the place preserving base materials properties is essential.
• It is quick—coatings could be added at as much as 10 kg per hour.
• Decrease temperatures of the general course of. Laser help permits the method to function at decrease fuel temperatures, for instance 400–700°C, in comparison with as much as 1,200°C for chilly spray, lowering energy consumption and simplifying system design.
• Nice-tuning of coating properties by creating personalized powders permits specialised traits resembling magnetism, solid-state lubrication and enhanced put on resistance to be launched into deposits. Grading composition gives native management of properties and permits the stresses at interfaces between dissimilar supplies to be diminished.

“Creating a brand new technology of revolutionary manufacturing expertise with superior processing capabilities might considerably support the transition to web zero,” explains O’Neill.

“The flexibility to customise the properties of the supplies is an actual game-changer and has an enormous vary of potential functions; examples are producing light-weight parts for electrical automobiles and aerospace, creating hydrogen storage methods, enhancing wind turbine upkeep, manufacturing energy-efficient batteries and gas cell parts, and growing superior warmth exchangers for industrial vitality financial savings and catalyst coatings for carbon seize.”

LACS in follow—aerospace

A specific benefit of LACS is its capacity to each construct and restore customized components, a functionality that’s acutely helpful for aerospace. They require high-precision, high-strength and comparatively low-volume manufacturing of usually advanced components. Utilizing conventional manufacturing strategies, probably the most cost-effective answer is to fabricate all of the components mandatory for a specific mannequin at one time and retailer them in a warehouse till they’re wanted.

This creates two most important points: storage is space-intensive and dear; and, as soon as the components are used, there merely aren’t any extra for restore. In consequence, plane can change into unusable, as there aren’t any alternative components to repair them—Concorde G-BBDG is a high-profile instance earlier than the mannequin was finally retired in 2003.

LACS presents a sustainable, cost-effective and environment friendly choice for restore, and, in additional excessive circumstances, re-manufacture from a base half. Conventional restore strategies, resembling welding, are unsuitable for high-performance functions, for instance, 6000 collection aluminum. The heating wanted to stick the brand new and previous materials collectively impacts the power and reliability of the repaired half.

O’Neill and his staff have proven that the comparatively low-temperature, localized laser heating utilized in LACS permits new materials to be added with out destructive unwanted effects. Moreover, as with 3D printing, the LACS tools has the potential to be programmed to construct to a specified design from a pc mannequin, permitting advanced, digital designs to be rapidly changed into tangible merchandise.

“That is transformative for a lot of industries, permitting customized components to be created and repaired on demand in a short while body, having low-cost, low-energy price range and environment friendly use of supplies,” says Dr. Martin Sparkes, Principal Analysis Affiliate within the CIP lab. “We’re excited to work along with trade companions to understand the potential of this distinctive and impactful expertise.”

Limitless potential

The following step for the CIP lab is to boost the aptitude of LACS to “3D print” a form. The staff are exploring a number of avenues to realize this aim, together with mounting the half on a shifting arm to permit it to be moved in 3D area and growing the management over the path of the powder stream to provide crisp, easy edges.

Comparability of deposited floor for Internet Form Chilly Spray Additive Manufacturing (NS-CSAM) and chilly spray (CS), clearly displaying the managed deposition given by NS-CSAM.

“At present, we now have little management over the form of deposition of the powder. This isn’t a difficulty for coatings however presents a big restraint for part-building functions. Our subsequent aim is to discover a answer to this limitation, and we have already got some very promising outcomes,” says O’Neill.

“The potential functions for LACS are limitless and we’re motivated to ship a expertise that may considerably support within the transition to web zero, by means of each a extra environment friendly, low-waste manufacturing expertise and the doorways it opens for sustainable product growth.”
