A strong knowledge heart community topology is important for making certain environment friendly, scalable, and safe community efficiency in at this time’s digital panorama.
You’ve invested in high-end community switches and routers. You’ve optimized your functions to course of requests with minimal latency. And but, your knowledge heart community efficiency continues to be subpar.
The wrongdoer could possibly be a suboptimal knowledge heart community topology. As a result of community topologies play a key function in figuring out how effectively community visitors flows inside a knowledge heart, poor topologies can undercut efficiency even when your functions and infrastructure are in any other case primed for pace.
What’s Community Topology in Knowledge Facilities?
In a knowledge heart, community topology refers back to the construction and format of networking gear and its relationship to servers.
To grasp absolutely what this implies, let’s step again and speak about how community visitors flows inside a knowledge heart. Usually, visitors in the end wants to maneuver to and from servers.
Nonetheless, you wouldn’t usually permit servers to interface instantly with exterior units as a result of doing so would make routing visitors effectively difficult and should heighten safety dangers.
So, as an alternative of connecting servers on to the Web, most knowledge facilities use a community topology by which community routers and switches function intermediaries between servers and the skin world. The routers and switches can carry out operations to assist safe and add effectivity to knowledge flows.
Community topology is the exact manner by which routers and switches are organized relative to servers.
Why Does Community Topology Matter?
Knowledge heart community topology is vital for a number of causes:
-
Community efficiency: Community efficiency hinges on the power to maneuver packets as rapidly as attainable and with minimal latency between servers and exterior endpoints. Poor community topologies could create bottlenecks that cut back community efficiency.
-
Scalability: The quantity of community visitors that flows by a knowledge heart could change over time. To accommodate these adjustments, community topologies have to be versatile sufficient to scale.
-
Price-efficiency: Networking gear could be costly, and switches or routers which are under-utilized are a poor use of cash. Ideally, community topology ought to be certain that switches and routers are used effectively, however with out approaching the purpose that they turn into overwhelmed and cut back community efficiency.
-
Safety: Though safety shouldn’t be a main consideration when designing a community topology as a result of it’s attainable to implement safety insurance policies utilizing any frequent community design, topology does play a job in figuring out how simple it’s to phase servers from the Web and filter malicious visitors.

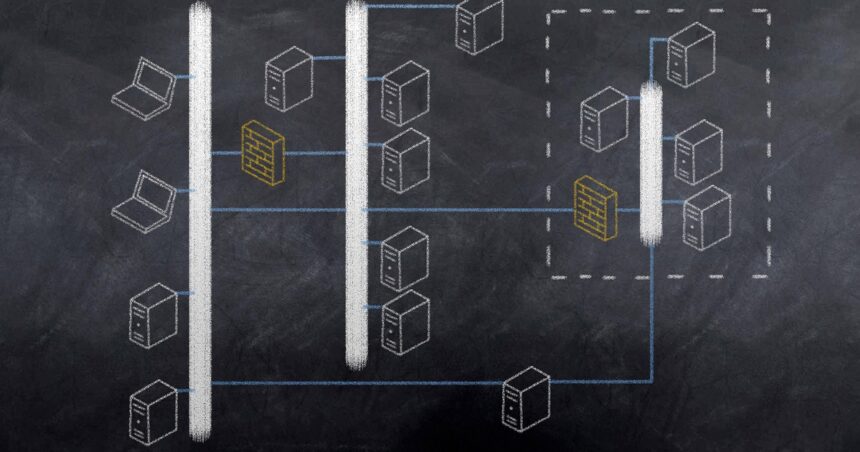

An optimized knowledge heart community topology can guarantee seamless efficiency throughout complicated infrastructures. Picture: Alamy
An optimized knowledge heart community topology can guarantee seamless efficiency throughout complicated infrastructures. Picture: Alamy
Forms of Knowledge Heart Community Topologies
There are a number of methods to design a knowledge heart community topology. Right here’s a take a look at the most typical:
1. Three-Tier Topology
Historically, most knowledge facilities used what’s generally known as a three-tier community topology. Beneath this design, community sources are organized into three tiers:
-
Entry tier: Offers direct connectivity to end-user units, enabling communication with the community.
-
Distribution tier: Acts as an middleman by aggregating visitors from entry switches and imposing insurance policies to handle routing and safety.
-
Core tier: Ensures high-speed, dependable interconnection between distribution layers and exterior networks, dealing with spine visitors.
The three-tier topology is comparatively easy to implement. Its main downside is that it isn’t very versatile or simple to scale as a result of a comparatively small variety of switches and routers should deal with a big quantity of community visitors. Consequently, these units are sometimes costly high-end fashions – that means that if you wish to improve their capability, it’s essential to add extra expensive gear.
Including such gear is neither simple nor quick, and it could possibly be inefficient from a value standpoint if visitors volumes fluctuate and in depth switching and routing capabilities are solely wanted often. In that case, you’d find yourself with costly gear that’s underutilized.
For these causes, the three-tier topology is often not splendid for knowledge facilities whose community visitors volumes fluctuate, though it might probably work properly when visitors ranges are constant and predictable.
2. High-of-Rack
In a top-of-rack knowledge heart topology, you put in community switches in every server rack. On this manner, a top-of-rack topology makes it simpler so as to add capability rapidly and cost-effectively.
As a result of the quantity of visitors that every change must deal with is decrease than it might be in a three-tier topology (the place a number of racks could possibly be linked to the identical change), the top-of-rack method can use inexpensive switches.
On this manner, a top-of-rack topology makes it simpler so as to add capability cheaply and rapidly. High-of-rack designs additionally scale naturally based mostly on knowledge heart capability as a result of the extra server racks you add, the extra switches you add.
A draw back is that you’ve extra switches to put in and preserve, growing the operational burden on groups accountable for deploying and managing networking gear. High-of-rack designs might also cut back effectivity in conditions the place a server rack doesn’t ship or obtain sufficient visitors to make the most of its switches at full capability.
3. Switched Cloth
A switched cloth is analogous in some respects to a three-tier topology, however with a bigger variety of switches, it turns into simpler to scale. It additionally resembles a top-of-rack topology, with the important thing distinction that servers aren’t completely assigned to a particular change, permitting for extra environment friendly use of change capability.
A switched cloth is analogous in some respects to a three-tier topology, however with a switched cloth, you’ve gotten a bigger variety of switches, making it simpler to scale. It’s additionally much like a top-of-rack topology, with the principle distinction being that servers aren’t assigned to a particular change, so it’s simpler to make use of change capability extra effectively.
The foremost downside of switched materials is their complexity; they’re difficult to design and implement since you should steadiness visitors and repeatedly restructure hyperlinks between servers and the change cloth.
4. Hybrid Topology
A hybrid topology isn’t a particular sort however quite a mix of a number of approaches. For example, you may design a topology the place some server racks have devoted switches, whereas different servers connect with a extra versatile server cloth. This method would lead to a top-of-rack topology for one a part of your community and a switched cloth for others.
The way to Select a Community Topology for Your Knowledge Heart
When deciding which community topology is true in your knowledge heart, the important thing elements to weigh embody:
-
Scalability wants: In the event you anticipate excessive levels of fluctuation in community visitors, a top-of-rack or switched cloth design is prone to be higher as a result of it scales extra simply.
-
Monetary sources: Three-tier topologies could include the next upfront value as a result of it’s essential to buy costly, enterprise-grade switches and routers. Then again, top-of-rack and switched cloth designs typically require larger ongoing bills since you should add gear as you scale and substitute particular person switches in the event that they fail.
-
Operational sources: In case you have fewer knowledge heart technicians accessible to handle gear, take into account sticking with a less complicated topology, like three-tier.
-
Bodily constraints: Whereas networking gear and the cables that connect with it don’t sometimes take up an excessive amount of area relative to servers, bodily area constraints could also be a difficulty in significantly small knowledge facilities or server rooms. In that case, a three-tier topology tends to work higher as a result of it doesn’t require as many particular person networking units or cables.
