A flexible haptic patch lets you feel the virtual world

As digital actuality (VR) and augmented actuality (AR) applied sciences quickly evolve, the demand for extra immersive, multisensory experiences grows alongside them. Among the many key frontiers is tactile suggestions—the power to bodily really feel the digital world.

Whereas wearable haptic fits outfitted with vibrational motors or fluidic actuators have made strides in enhancing realism, delivering exact, various, and pure tactile sensations to the pores and skin stays a serious problem. The limitation has largely stemmed from an absence of compact, light-weight, high-performance tactile actuators.

That is the place our analysis takes a daring step ahead. My colleagues and I’ve developed a brand new class of skinny, versatile tactile actuators designed to ship wealthy, nuanced haptic suggestions on to the pores and skin.

Our work is published within the journal Science Advances.

Tiny, highly effective tactile actuators

To supply dense and various tactile sensations, actuators should be each compact and able to producing a variety of suggestions. Addressing this, we created a novel tactile actuator based mostly on a dielectric elastomer actuator (DEA). DEAs produce vital space growth when voltage is utilized, because of the phenomenon referred to as Maxwell stress. By combining a DEA with a small compressive spring, we efficiently transformed this space growth right into a linear displacement.

The result’s a remarkably small actuator measuring simply 6 mm in diameter and 1.1 mm in thickness. Regardless of its skinny, compact design, the actuator can produce tactile sensations starting from stress to high-frequency vibrations, all whereas consuming lower than 60 mW of energy. Impressively, the actuator is highly effective sufficient to raise a 25 g weight, regardless of its very mild weight of 32 mg.

A versatile, skin-conformal haptic patch

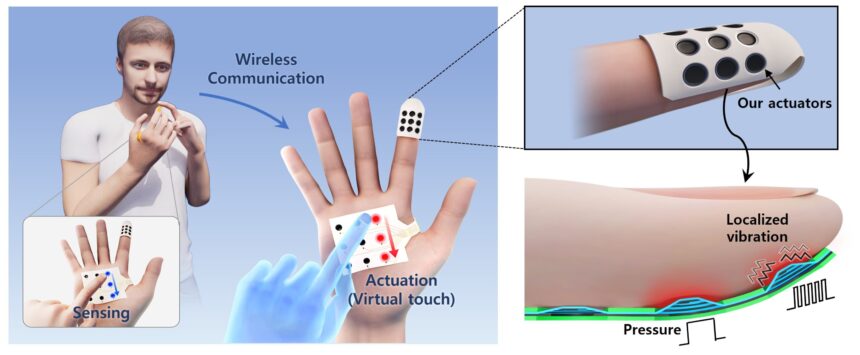

Constructing upon this actuator, we developed a versatile haptic patch incorporating a dense array of 9 actuators inside a small fingerpad-sized space. Fabricated on a skinny, versatile printed circuit board (PCB), the complete patch weighs solely 0.3 g and might comfortably conform to the contours of the pores and skin with out hindering pure hand actions. Every actuator is individually managed, enabling the patch to dynamically render textures, simulate the 3D surfaces of digital objects, and ship intricate patterns of tactile suggestions.

To finish the system, we built-in a reflective photomicrosensor array, permitting the patch not solely to ship haptic suggestions but additionally to sense contact. This bidirectional functionality opens the door for wi-fi tactile communication in VR environments or between customers, the place contact sensations could be encoded, transmitted, and recreated in actual time.

Wanting forward

Our work introduces a skinny, versatile, and light-weight wearable haptic patch, made attainable by this next-generation tactile actuator know-how. Past VR and AR purposes, we consider these actuators maintain potential for broader use, together with in miniaturized robotics, superior prosthetics, and medical units.

By bridging the hole between the digital and bodily worlds, this know-how marks an thrilling step towards making contact a pure a part of our digital experiences.

This story is a part of Science X Dialog, the place researchers can report findings from their printed analysis articles. Visit this page for details about Science X Dialog and the way to take part.

Jung-Hwan is an postdoctroral researcher on the College of Illinois Urbana-Champaign. Earlier than becoming a member of, he labored as a post-doc on the Electronics Telecommunication Analysis Institute (ETRI). He completed his Ph.D. in Korea Superior Institute of Science and Techonology (KAIST). His analysis pursuits embrace haptics, tender robotics and human-robot interplay.
