3D printing metal molds poised to accelerate US auto manufacturing

Current developments on the Division of Vitality’s Oak Ridge Nationwide Laboratory present that 3D-printed metallic molds supply a sooner, more cost effective and versatile strategy to producing giant composite parts for mass-produced autos than conventional tooling strategies.

The analysis, performed on the Manufacturing Demonstration Facility, or MDF, at ORNL, confirms that large-scale additive manufacturing is well-suited for creating advanced metallic molds, with efficiencies that would speed up the adoption of light-weight composite supplies within the automotive sector.

“This type of expertise can assist reindustrialize the U.S. and increase its competitiveness by creating smarter, sooner methods to construct important instruments,” mentioned lead researcher Andrzej Nycz with ORNL’s Manufacturing Robotics and Controls group. “It brings us nearer to an automatic, clever manufacturing course of.”

Historically, metallic instruments are made by subtracting materials from giant, cast metal blocks—a course of that removes as much as 98% of the unique materials, generates important waste and infrequently takes months attributable to provide chain delays. In distinction, additive manufacturing deposits metallic layer by layer, utilizing broadly accessible welding wire as a feedstock and minimizing waste to about 10%.

Additive manufacturing additionally permits engineers to supply extra advanced mildew geometries, comparable to inner heating channels, that may be tough to attain utilizing typical machining.

“The extra advanced the form, the extra beneficial additive manufacturing turns into,” Nycz mentioned.

The analysis workforce partnered with Collaborative Composites Options, or CCS, operator of IACMI–The Composites Institute, to place the idea to the take a look at. They selected to 3D print a big battery enclosure mildew, full with intricate inner options.

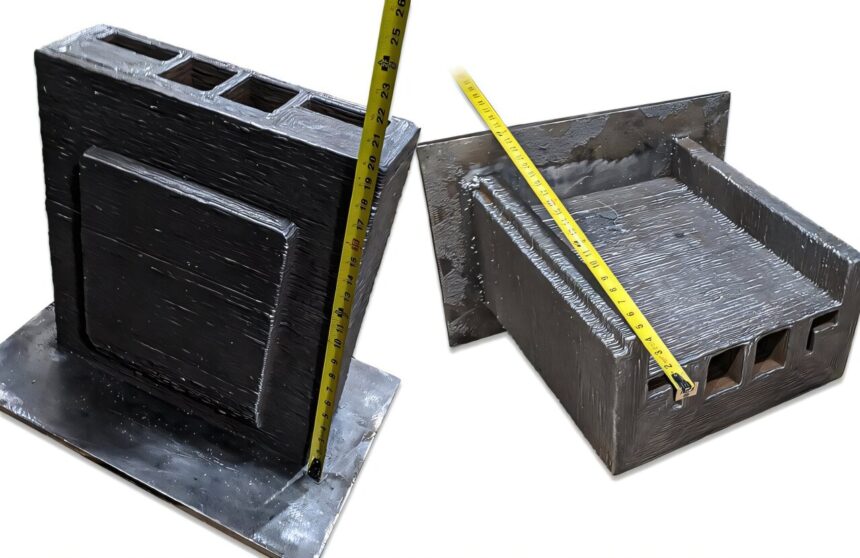

Utilizing a gasoline metallic arc welding, or GMAW, additive manufacturing course of at Lincoln Electrical Additive Options, two near-net-shape dies had been printed from chrome steel ER410 wire.

The GMAW course of makes use of an electrical arc to soften a consumable wire electrode to construct up metallic layers and create advanced parts whereas utilizing a protecting shielding gasoline to stop contamination. The workforce utilized a specialised toolpath technique for weight discount whereas sustaining energy.

Subsequent evaluation confirmed the lightweighted mildew met structural efficiency necessities, validating the feasibility of additive manufacturing for high-performance manufacturing tooling.
